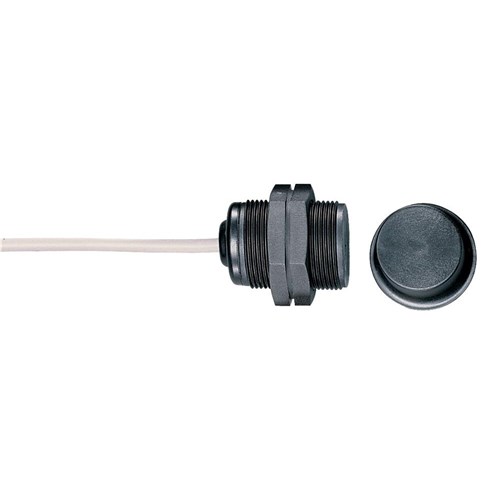

Schmersal 101178086 Magnetic Safety Sensor 1NO+2NC 10m Cable

Product Code: 101178086

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Magnetic Safety Sensor
Brand SCHMERSAL
Actuating Element Magnet
Cable Length 10 m
Contact Configuration 1NO+2NC
Degree of Protection IP67
Housing Material Glass Fibre Reinforced Thermoplastic
Installation Conditions Quasi-flush
Mounting Type Quasi-Flush
Operational Temperature -25 to 70 deg C
Rated Current 0.4 A
Rated Frequency 5 Hz
Rated Power 10 W
Sensor Size 44 mm L
Standards and Approvals BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance 10-55 Hz
Wire Size 0.25 sq-mm
