Specifications

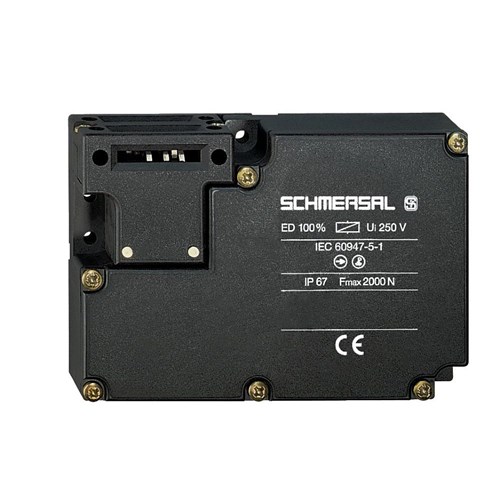

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 161
No. of N/C Contacts	4
No. of N/O Contacts	2
Rated Insulation Voltage (Ui)	250 V
Contact Configuration	1NO+2NC
Rated Current	6 A
Rated Voltage	24 V AC/DC
Mechanical Durability	1000000 Cycles
Cable Entry	4 x M16 x 1.5
Contact Material	Silver
Guard Locking Force	2,000 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Mounting Type	Screw
Depth	30 mm
Height	90 mm
Weight	425 g
Width	130 mm
Operating Temperature	-25 to 60 °C
IP Rating	IP67
Standards and Approvals	IFA, cULus, CCC, UKCA
Enclosure Dimensions	30 mm L x 130 mm W x 90 mm H
