Specifications

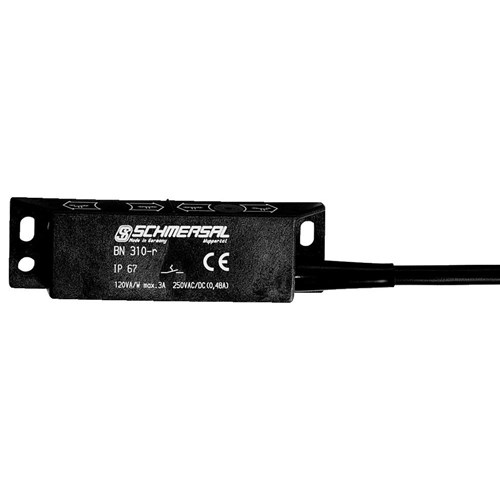

Product Type	BN 310-2RZ
Brand	Schmersal
Series	BN 31/310
Cable Length	1 m
Switching Current	1 A
Switching Element	Reed Contacts
Switching Voltage	200 V AC, 200 V DC
Type of Switching Output	Magnetic Drive
Accuracy	0.3 mm
Electrical Connection	Pre-wired cable
Rated Current	3 A
Switching Capacity (AC)	30 W
Mechanical Durability	1000000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/ms
Depth	13 mm
Height	25 mm
Weight	50 g
Width	88 mm
Operating Temperature	-25 to 70 degC
IP Rating	IP67
