Specifications

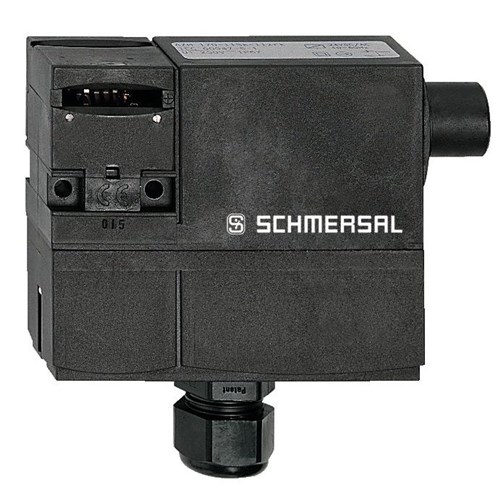

Product Type	Solenid Interlock Switch
Brand	SCHMERSAL
Series	AZM170
Action	Slow Action
Actuating Force	5 N
Actuating Speed	2 m/s
Actuator Type	Roller Lever
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-25 to 60 deg C
Rated Current	100 A
Rated Insulation Voltage	250 V
Rated Voltage	24 VAC/VDC
Sensor Size	14.5 mm L x 108 mm W x 90 mm H
Standards and Approvals	IFA, cULus, CCC, UKCA
Terminal Type	Screw terminals M20 x 1.5
