Specifications

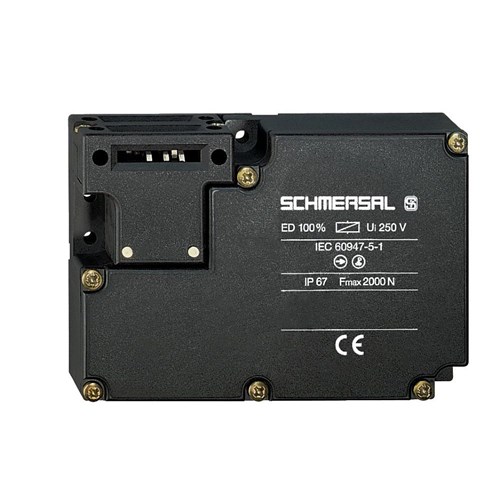

Product Type	Solenid Interlock Switch
Brand	SCHMERSAL
Series	AZM161
Action	Slow Action
Actuating Force	20 N
Actuating Speed	2 m/s
Cable Entry	4 x M16 x 1.5
Contact Configuration	NO+NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000 Cycles
Operational Temperature	60 deg C
Rated Current	1000 A
Rated Force	30 N
Rated Insulation Voltage	250 V
Rated Power	10 W
Rated Voltage	24/230 VAC, 24 VDC
Sensor Size	30 mm L x 130 mm W x 90 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
