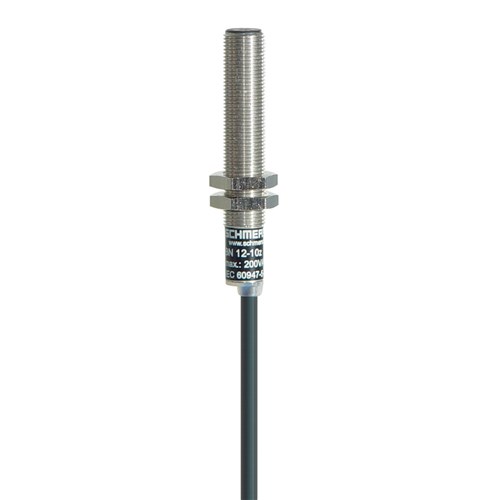

Schmersal 101186833 Magnetic Reed Switch 1m L Cable 1A BP 10 Cable Terminal

Product Code: 101186833

  • Rated for 200 VAC, 1 A
  • Durable metal housing, IP67 protection
  • Operates in -25 to 70°C range
  • Magnetic drive with NC contact config
  • Mechanical life of 10 million ops
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Magnetic Reed Switch
Brand SCHMERSAL
Series BN 12
Accuracy 0.3 mm
Actuating Element Magnet
Actuating Speed 18 m/s
Bounce Duration 0.2 ms
Cable Length 1 m
Contact Configuration NC
Control Element Reed Contacts
Degree of Protection IP67
Housing Material Metal
Mechanical Life 10000000 Operations
Mounting Type Threaded
Operational Temperature -25 to 70 deg C
Rated Current 1 A
Rated Voltage 200 VAC
Resistance 10-55 Hz
Switching Capacity 30 W
Switching Type Magnetic Drive
Weight 58 g

Description

<p>In the world of industrial automation and electrical engineering, precision, reliability, and durability are paramount. This product is designed to meet those exacting standards with a robust feature set suited for demanding environments.</p><p>Operating at a rated voltage of 200 VAC and a current of 1 A, this device provides reliable performance in various applications. Its accuracy stands at an impressive 0.3 mm, ensuring precise operations where every millimeter counts.</p><p>Constructed from durable metal housing material, it offers enhanced protection against physical impacts and environmental factors. The device boasts an IP67 degree of protection, making it dust-tight and capable of withstanding immersion in water up to one meter deep for short periods—ideal for harsh industrial settings.</p><p>With an operational temperature range from -25 to 70 degrees Celsius, this product remains functional across diverse climatic conditions. Weighing just 58 grams, it is lightweight yet sturdy enough for long-term use without compromising on performance.</p><p>The cable length measures 1 meter, providing adequate reach while maintaining flexibility during installation. Featuring a normally closed (NC) contact configuration combined with magnetic drive switching type ensures reliable operation in automated systems.</p><p>Capable of actuating speeds up to 18 m/s and equipped with reed contacts as the control element along with a magnet as the actuating element—this switch delivers swift response times crucial in high-speed applications.</p><p>Engineered for longevity, the mechanical life extends up to ten million operations—a testament to its endurance under continuous use scenarios. With a switching capacity rated at 30 watts coupled with minimal bounce duration of just 0.2 milliseconds—it guarantees efficient power management within your system architecture.</p><p>Moreover resistance between frequencies ranging from 10-55 Hz further underscores its versatility across varied operational contexts—ensuring stability even amidst fluctuating environmental vibrations or shocks commonly encountered within industrial setups.</p><p>This comprehensive suite makes it suitable not only for general-purpose applications but also specialized tasks requiring stringent specifications adherence—all wrapped into one compact solution ready-made tailored towards fulfilling technical needs seamlessly!</p>
