Specifications

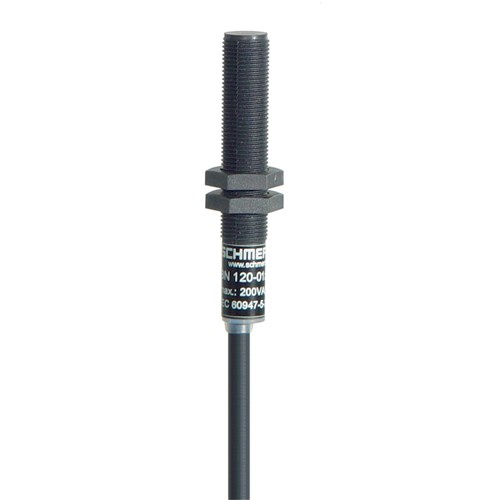

Product Type	BN 120-01Z/V
Brand	Schmersal
Series	BN 120
Cable Length	1 m
Configuration Type	Opener (NC)
No. of N/C Contacts	1
No. of N/O Contacts	0
Switching Current	1 A
Switching Element	Reed Contacts
Switching Voltage	200 V AC
Type of Switching Output	Magnetic Drive
Accuracy	0.3 mm
Contact Configuration	NC
Electrical Connection	Pre-wired cable
Rated Current	1 A
Rated Voltage	200 VAC
Switching Capacity (AC)	30 W
Mechanical Durability	10000000 Operations
Actuator Type	Magnet
Housing Material	Glass Fibre Reinforced Thermoplastic
Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Threaded
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	71 mm
Weight	76 g
Operating Temperature	-25 to 70 degC
IP Rating	IP67
