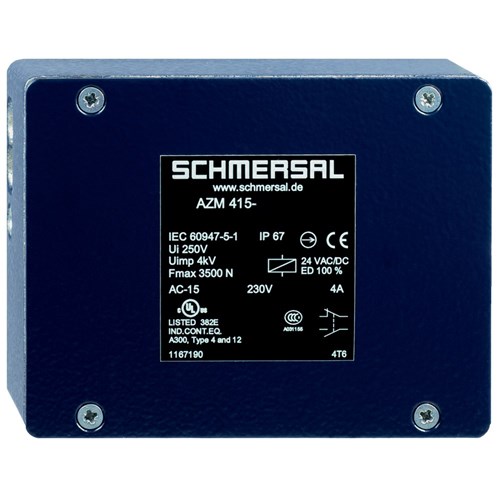

Schmersal 101186872 Solenid Interlock Switch 230VAC 2NC+2NO

Product Code: 101186872

1

Specifications

Product Type	Solenid Interlock Switch
Brand	SCHMERSAL
Series	AZM415
Action	Slow Action
Actuating Force	15 N
Actuating Speed	0.2 m/s
Contact Configuration	2NC+2NO
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Aluminium
Mechanical Life	1000000 Cycles
Operational Temperature	50 deg C
Rated Current	6 A
Rated Insulation Voltage	250 V
Rated Power	10 W
Rated Voltage	230 VAC
Sensor Size	46.5 mm L x 100 mm H
Standards and Approvals	cULus, CCC, UKCA
