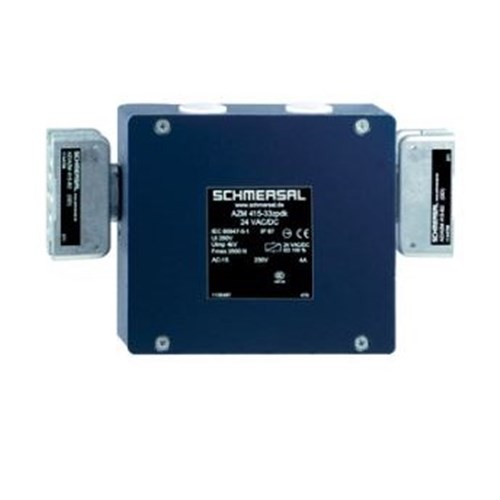

Schmersal 101187041 Solenid Interlock Switch 24VAC/VDC

Product Code: 101187041

1

Specifications

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 415
No. of N/C Contacts	3
No. of N/O Contacts	3
Rated Insulation Voltage (Ui)	250 V
Switching Principle	Slow Action
Rated Current	6 A
Rated Power	10 W
Rated Voltage	24 V AC/DC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Actuator Type	Ball latch (spring-loaded)
Cable Entry	2 x M20 x 1.5
Contact Material	Silver
Guard Locking Force	2500 N
Housing Material	Aluminium (painted)
Depth	46.5 mm
Height	125 mm
Weight	1240 g
Width	141 mm
Operating Temperature	-25 to 50 °C
IP Rating	IP65, IP67
Standards and Approvals	cULus, CCC, UKCA
Enclosure Dimensions	46.5 mm L x 100 mm H
