Specifications

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 260
Cable Length	5 m
No. of N/C Contacts	2
No. of N/O Contacts	1
Contact Configuration	1NO+2NC
Rated Current	0.01 A
Rated Frequency	5 Hz
Rated Voltage	24 V DC
Actuator Type	BPS 260
Housing Material	Glass-fibre, reinforced thermoplastic
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/11 ms
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	36 mm
Weight	274 g
Width	26 mm
Size	0.25 sq-mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Standards and Approvals	EN IEC 60947-5-3, EN ISO 13849-1
Enclosure Dimensions	13 mm L x 26 mm W x 36 mm H

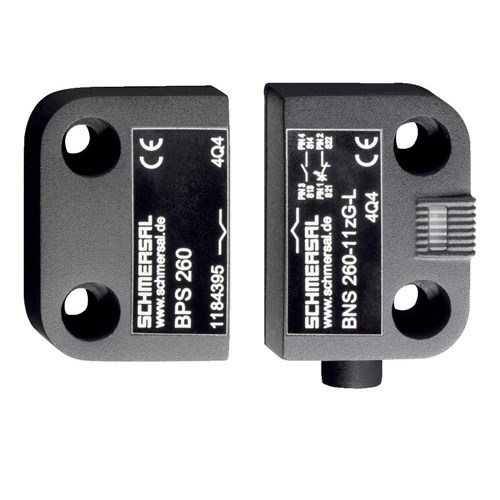

Schmersal 101190997 Magnetic Safety Sensor 1NO+2NC 5m Cable
