Specifications

Product Type	Magnetic Safety Sensor
Brand	SCHMERSAL
Actuating Element	Magnet
Actuating Force	100 N
Cable Length	2 m
Degree of Protection	IP67
Housing Material	Glass Fibre Reinforced Thermoplastic
Installation Conditions	Quasi-flush
Mechanical Life	25000000 Cycles
Mounting Type	Quasi-Flush
Number of Poles	4
Operational Temperature	-25 to 70 deg C
Rated Current	0.01 A
Rated Frequency	5 Hz
Rated Power	0.24 W
Rated Voltage	24 VDC
Sensor Size	43.3 mm L x 119.5 mm W x 140 mm H
Standards and Approvals	BG-GS-ET-14; EN IEC 60947-5-3; EN ISO 13849-1
Vibration Resistance	10-55 Hz
Wire Size	0.25 sq-mm

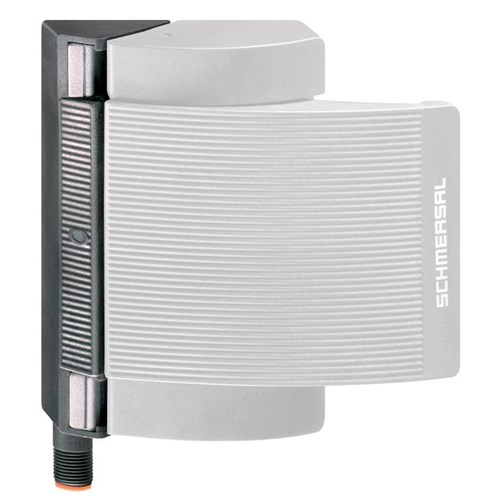

Schmersal 101191703 Magnetic Safety Sensor 2m Cable
