Specifications

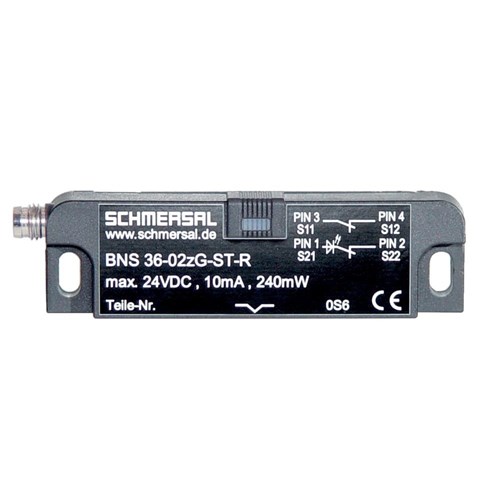

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 36
No. of N/C Contacts	2
No. of N/O Contacts	1
Plug Type	Connector 8 mm, 6-pole, Latching interlocking
Rated Current	0.01 A
Rated Frequency	5 Hz
Rated Power	0.24 W
Rated Voltage	30 V DC
Mechanical Durability	25000000 Cycles
Actuator Type	BPS 36-2; BPS 36-1
Housing Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Quasi-Flush
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	13 mm
Height	25 mm
Weight	30 g
Width	88 mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Enclosure Dimensions	13 mm L x 88 mm W x 25 mm H
