Specifications

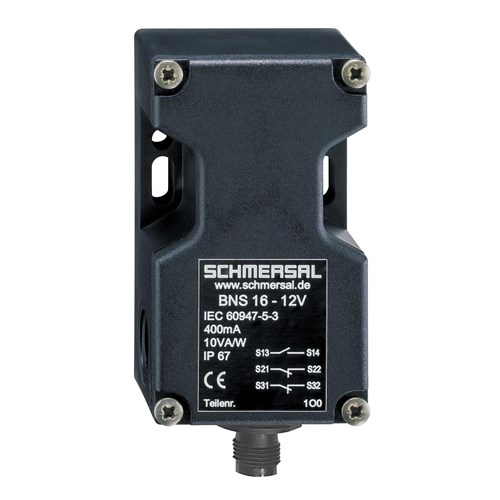

Product Type	Magnetic safety sensor
Brand	Schmersal
Series	BNS 16
No. of N/C Contacts	2
No. of N/O Contacts	1
Plug Type	Connector M12
Rated Current	0.4 A
Rated Frequency	5 Hz
Rated Power	10 W
Rated Voltage	100 V AC/DC
Mechanical Durability	25000000 Cycles
Actuator Type	BPS 16
Housing Material	Glass-fibre, reinforced thermoplastic
Mounting Type	Not Flush
Vibration Resistance acc. To IEC/EN 60068-2-6	10-55 Hz
Depth	39.5 mm
Height	107 mm
Weight	138 g
Width	55 mm
Operating Temperature	-25 to +70 °C
IP Rating	IP67
Enclosure Dimensions	39 mm L x 52 mm W x 90 mm H
