Specifications

Product Type	Selector Switch
Brand	SCHMERSAL
Series	RSS/RST - Key selector switch
Actuator Type	Key
Ambient Temperature	0 to 80 deg C
Cable Cross Section	0.75 sq-mm
Colour	Silver
Degree of Protection	IP65
Front Ring Colour	Silver
Front Ring Material	Aluminium
Fully Insulated	Yes
Gross Weight	100 g
Height	39.5 mm
Hole Diameter	39.5 mm
Installation Conditions	Arbitrarily
Mechanical Life	1 million Operations
Mounting Hole Diameter	22.3 mm
Mounting Type	Flange
Number of Positions	3
Operational Temperature	75 deg C
Sealing Type	Membrane, Lip Gaskets, Form Seals
Spacing	50 mm x 60 mm
Standards and Approvals	EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Switching Angle	90 deg
Terminal Type	M20 x 1.5 mm Screw
Tightening Torque	0.6 N-m

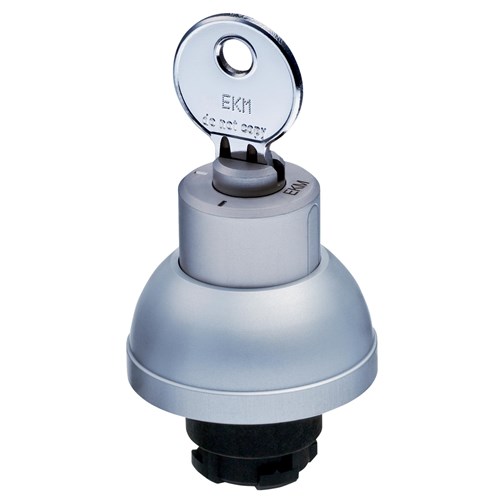

Schmersal 101195365 Selector Switch Silver 3Position Key M20x1.5 Screw Terminal 39.5mm H
