Specifications

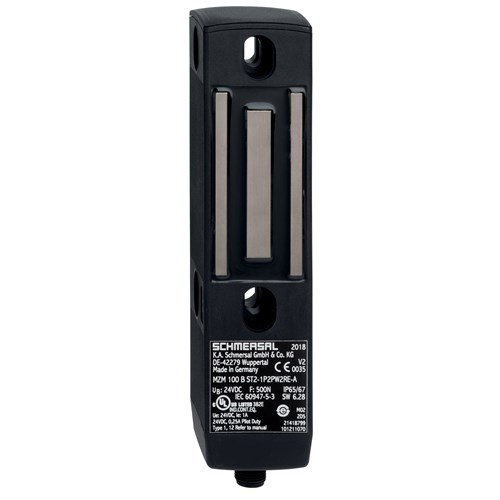

Product Type	Solenid Interlock Switch
Brand	Schmersal
Series	MZM 100
Rated Insulation Voltage (Ui)	32 V
Rated Current	1,100 mA
Rated Voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Actuator Type	MZM 100-B1.1
Guard Locking Force	500 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Depth	40 mm
Height	177.5 mm
Weight	698 g
Width	40 mm
Operating Temperature	-25 to 55 °C
IP Rating	IP67; IP65
Standards and Approvals	EN IEC 61508, EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3
