Specifications

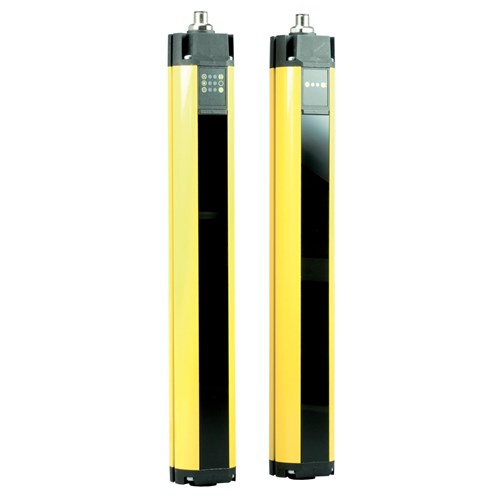

Product Type	Safety Light Grid
Brand	Schmersal
Series	SLG 420
Cable Length	100 m
Plug Type	M12, 4-pole (Transmitter); M12, 8-pole (Receiver)
Rated Current	0.5 A
Rated Power	8 W
Rated Voltage	24 V
Supply Voltage	24 V DC ±10%
Terminal Type	M12 Connector
Response Time	10 ms
Blanking	No
Housing Material	Aluminium
Material	Aluminium
No. of Beams	2
Sensor Distance	8 m to 50 m
Height	500 mm
Weight	2,780 g
Beam Spacing	500 mm
Protective Height	500 mm
Operating Temperature	-25 to +50 °C
IP Rating	IP67
Standards and Approvals	TUV, cULus
