Specifications

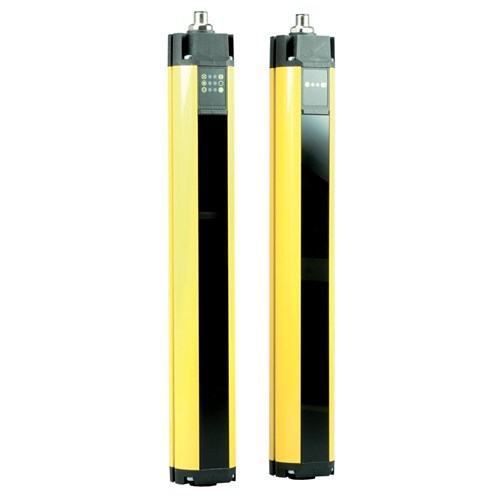

Product Type	Safety Light Grid
Brand	SCHMERSAL
Series	SLG
Cable Length	100 m
Plug Type	M12, 4-pole (Transmitter); M12, 8-pole (Receiver)
Rated Current	0.5 A
Rated Power	8 W
Rated Voltage	24 V
Supply Voltage	24 V DC ±10%
Terminal Type	M12 Connector
Response Time	10 ms
Housing Material	Aluminium
Material	Aluminium
Height	800 mm
Weight	3780 g
Operating Temperature	-25 to 70 deg C
IP Rating	IP67
Beam Spacing	400 mm
Blanking	Yes
No. of Beams	3
Protective Height	800 mm
Sensor Distance	8 m to 50 m
Standards and Approvals	TUV, cULus
