Specifications

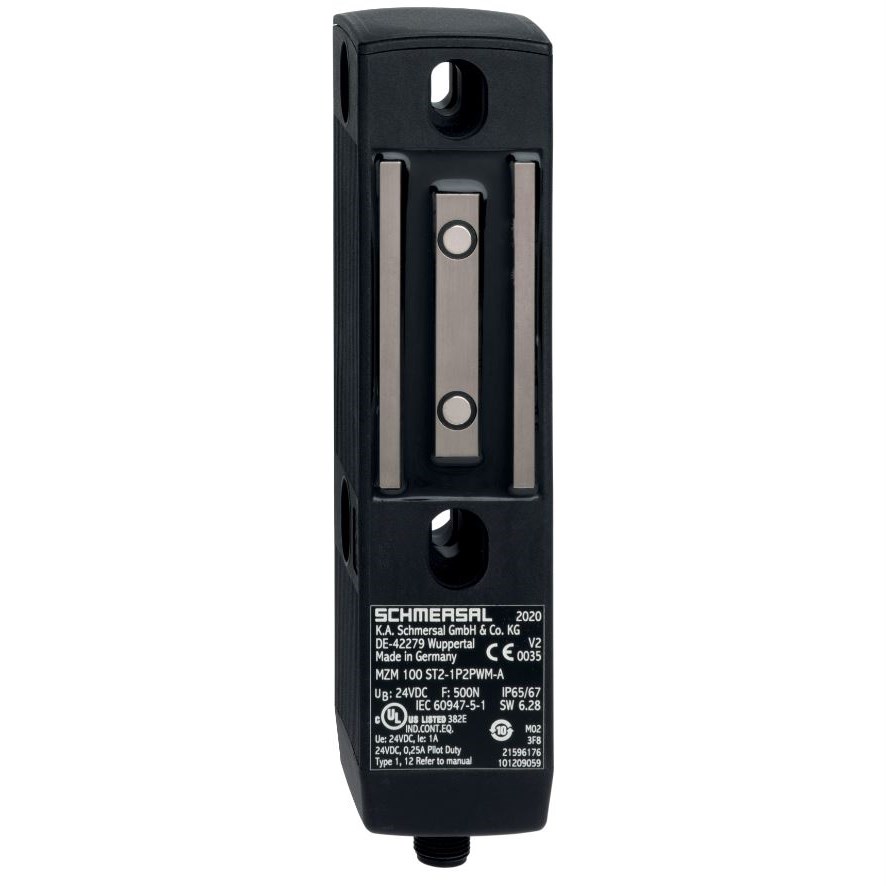

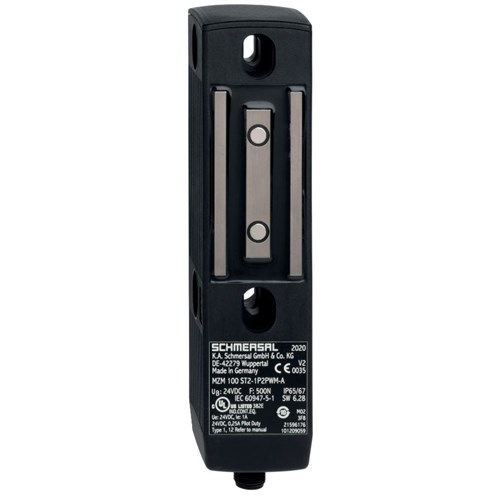

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	MZM 100
Over Voltage Category	3
Rated Current	1,100 mA
Rated Voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Mechanical Durability	1000000 Cycles
Actuator Type	MZM 100-B1.1
Guard Locking Force	500 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/11 ms
Depth	40 mm
Height	177.5 mm
Weight	624 g
Width	40 mm
Operating Temperature	-25 to 55 °C
IP Rating	IP67; IP65
Performance Level	e (Interlocking Function)
Standards and Approvals	TUV, cULus, UKCA
Enclosure Dimensions	40 mm L x 40 mm W x 179 mm H
