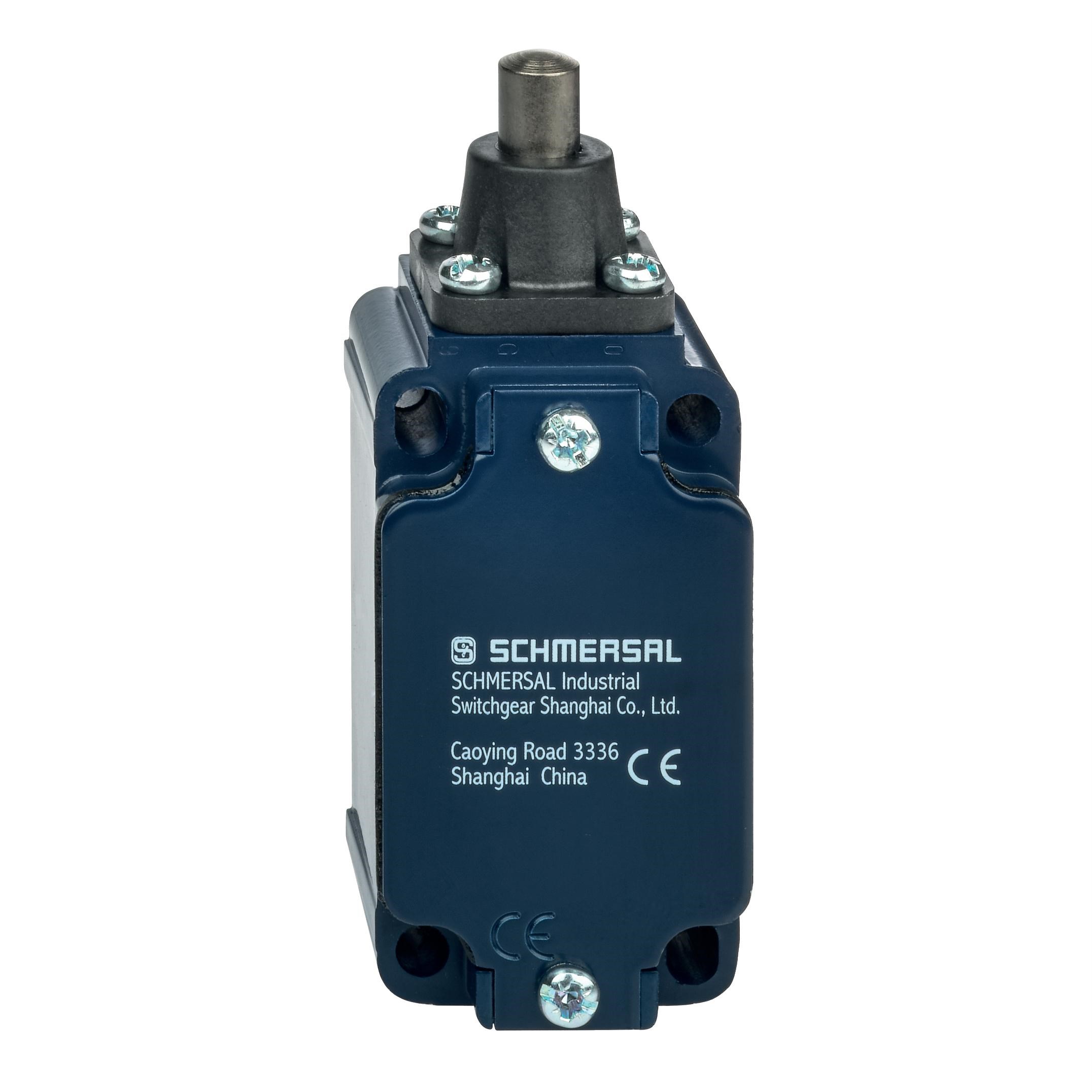

Schmersal 101211813 EX Position Switch with Safety Function 4-32VDC

Product Code: 101211813

1

Specifications

Product Type	Position Switch
Brand	Schmersal
Series	RLY
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 VAC 500 V
Rated Voltage	4-32 VDC
Terminal Type	Screw terminals
Thermal Test Current	5A
Actuator Type	Plunger
Housing Material	Metal, zinc die-cast
Depth	38 mm
Height	103.5 mm
Weight	320 g
Width	40.5 mm
Operating Temperature	-20 to 80 deg C
IP Rating	IP65
Ambient Temperature	max. +50 °C
Standards and Approvals	ATEx/IECex

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

CAD Blocks & Dimensions

Dimensions

Dimensions
