Specifications

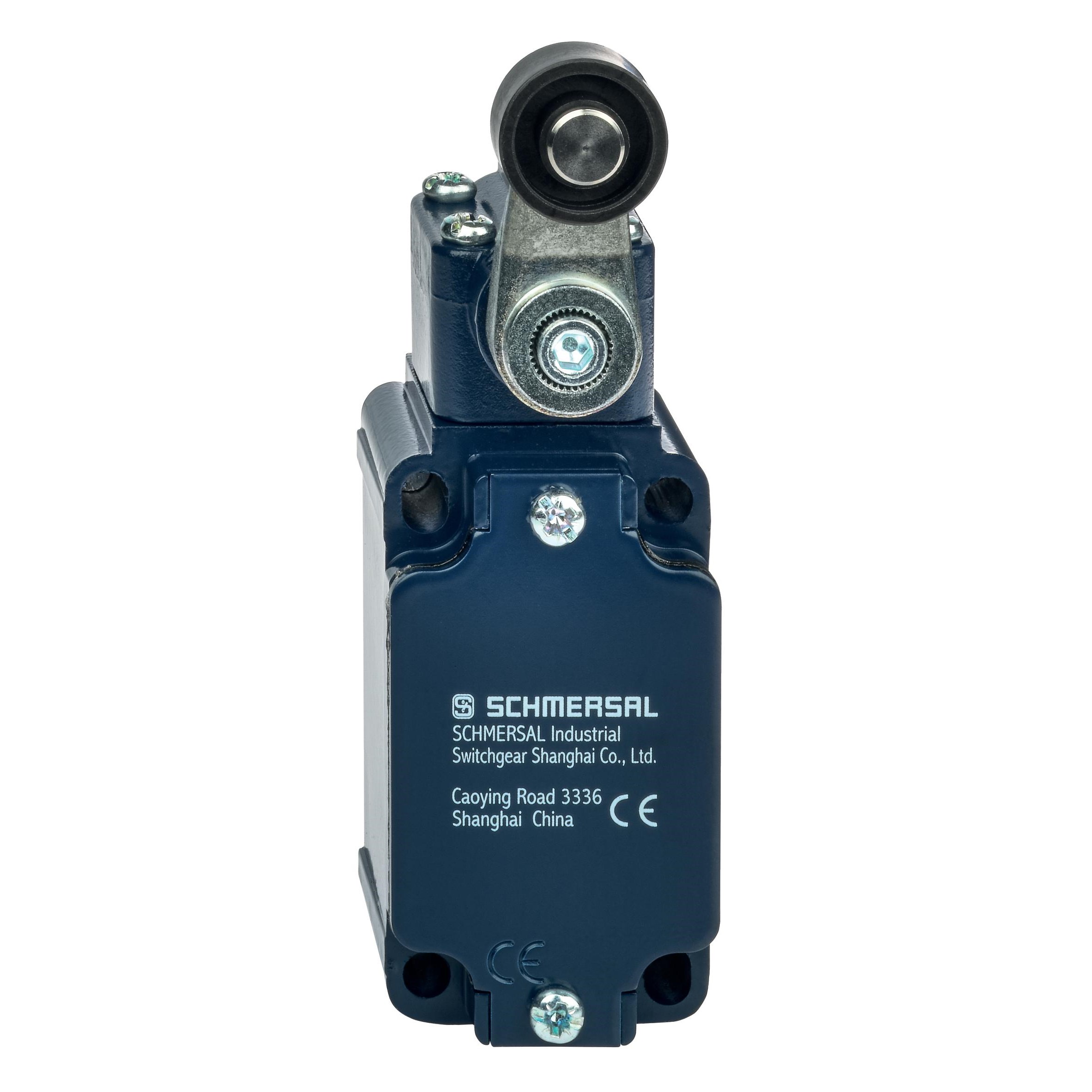

Product Type	Position Switch
Brand	Schmersal
Series	Ex-T335
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	250 VAC 500 V
Switching Principle	Slow Action
Contact Configuration	NC
Rated Current	4 A
Rated Voltage	230 VAC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Thermal Test Current	5A
Actuator Type	Roller lever
Contact Material	Silver
Housing Material	Metal, zinc die-cast
Depth	60.6 mm
Height	134 mm
Weight	400 g
Width	40.5 mm
Operating Temperature	-20 to 60 deg C
IP Rating	IP65
Ambient Temperature	max. +50 °C
Standards and Approvals	ATEx, CCC-Ex, cULus, EC000030, EN 60079-1, EN 60079-31, EN 60079-7, EN IEC 60079-0, IECEx, INMETRO
Enclosure Dimensions	60.6 mm L x 40.5 mm W x 134 mm H
