Specifications

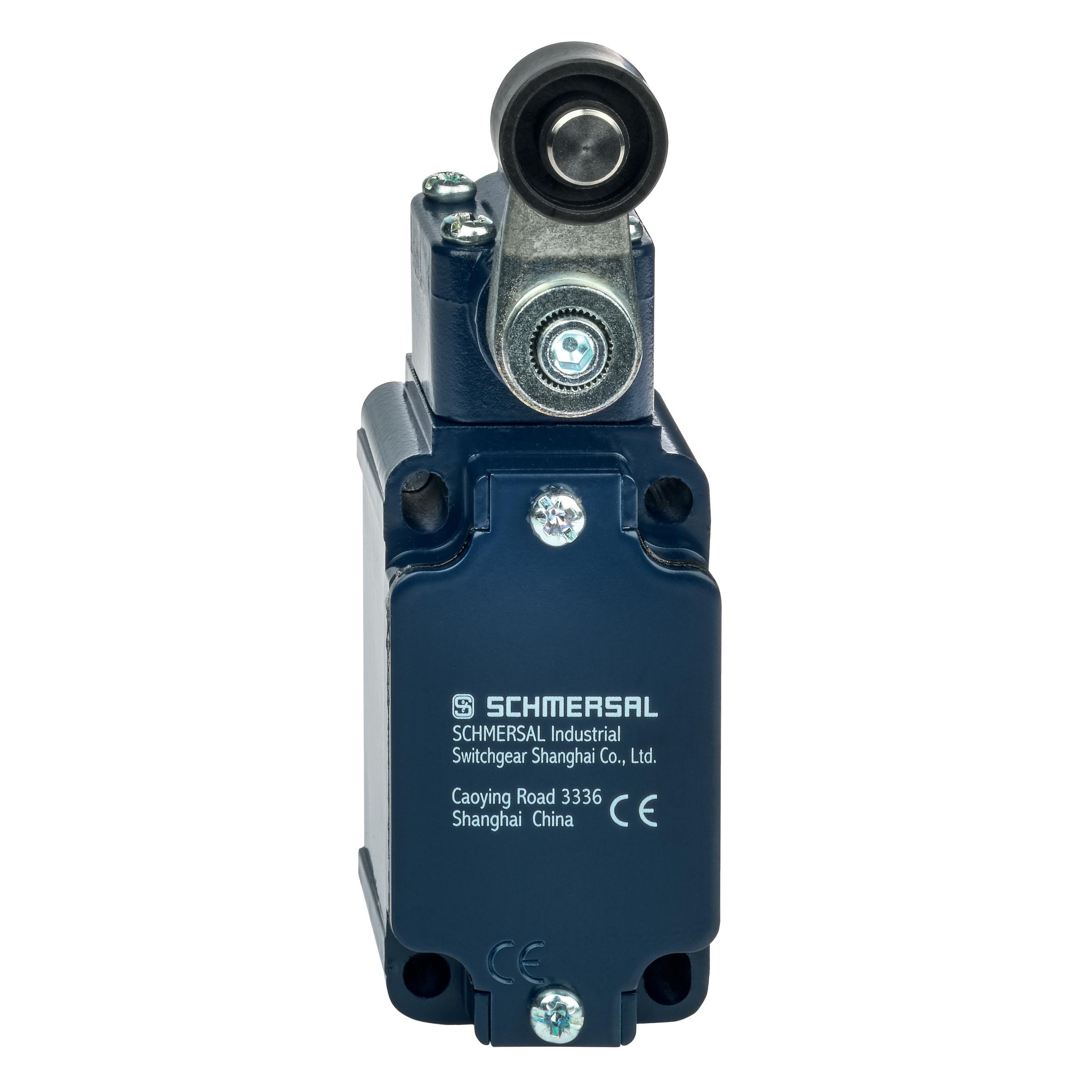

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Series	Ex-T335
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	4 A
Rated Voltage	230 VAC
Mechanical Durability	1000000 Cycles
Contact Material	Silver
Housing Material	Metal, Die Cast Zinc
Weight	400 g
Operating Temperature	-20 to 60 deg C
IP Rating	IP67
Standards and Approvals	ATEx, CCC-Ex, cULus, EC000030, EN 60079-1, EN 60079-31, EN 60079-7, EN IEC 60079-0, IECEx, INMETRO
Enclosure Dimensions	60.6 mm L x 40.5 mm W x 134 mm H
