Specifications

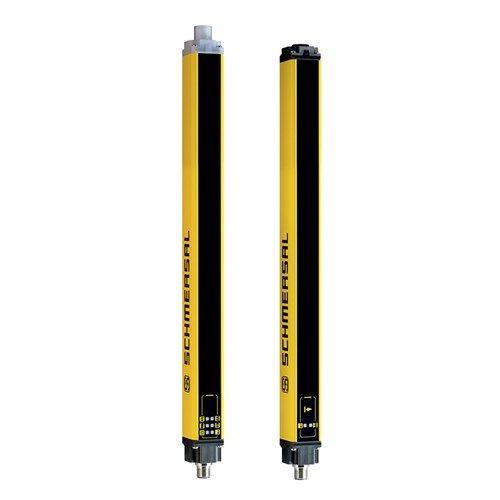

Product Type	Safety Light Grid
Brand	SCHMERSAL
Series	SLG
Cable Length	100 m
Plug Type	M12, 4-pole (Transmitter); M12, 8-pole (Receiver)
Rated Current	0.25 A
Rated Power	10 W
Rated Voltage	24 V
Supply Voltage	24 V DC -10%/+10%
Terminal Type	M12 Connector
Response Time	10 ms
Housing Material	Aluminium
Material	Aluminium
Depth	33 mm
Height	900 mm
Weight	1629 g
Width	27.8 mm
Operating Temperature	-25 to 70 deg C
IP Rating	IP66, IP67
Beam Spacing	300 mm
Blanking	Yes
No. of Beams	4
Protective Height	900 mm
Sensor Distance	0.3 m to 12 m
Standards and Approvals	TUV, cULus, ECOLAB
