Specifications

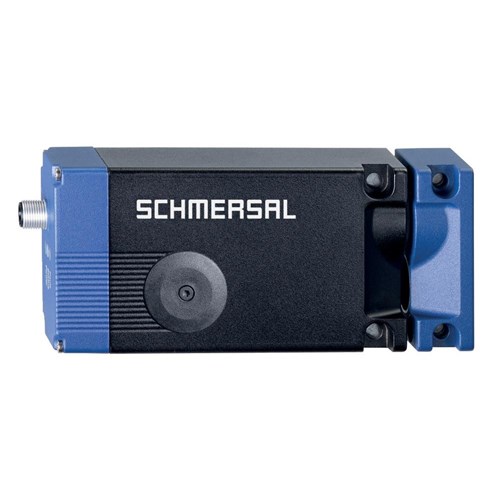

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 40
Rated Insulation Voltage (Ui)	32 V
Rated Voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Mechanical Durability	1000000 Cycles
Actuator Type	AZM400-B1
Guard Locking Force	10,000 N
Housing Material	Light alloy die-casting
Depth	46.7 mm
Height	156.7 mm
Weight	764 g
Width	77.8 mm
Operating Temperature	-20 to 55 °C
IP Rating	IP66; IP67
Standards and Approvals	TUV, cULus, FCC, IC, UKCA, ANATEL
Enclosure Dimensions	46.7 mm L x 156.7 mm H
