Specifications

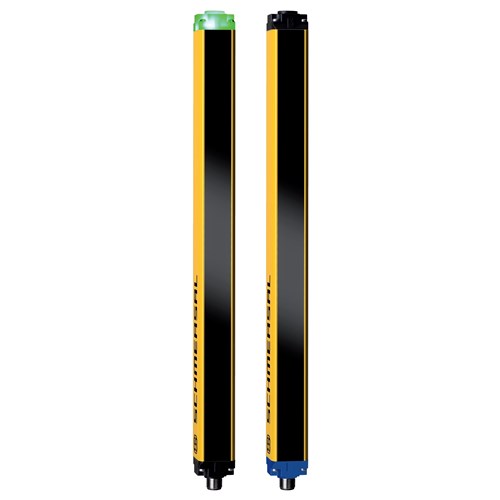

Product Type	Safety Light Curtain
Brand	SCHMERSAL
Series	SLC
Cable Length	100 m
Plug Type	M12, 4-pole (Transmitter); M12, 5-pole (Receiver)
Rated Power	10 W
Rated Voltage	24 VDC
Supply Voltage	24 V DC -20%/+20%
Mechanical Durability	100000 Cycles
Housing Material	Aluminium
Material	Plastic, Reinforced Glass Fibre
Depth	33 mm
Height	1,731 mm
Weight	2,720 g
Width	27.8 mm
Operating Temperature	50 deg C
IP Rating	IP67
No. of Beams	58
Protective Height	1,690 mm
Sensor Distance	0.3 m to 7 m
Standards and Approvals	EN IEC 60947-5-1
