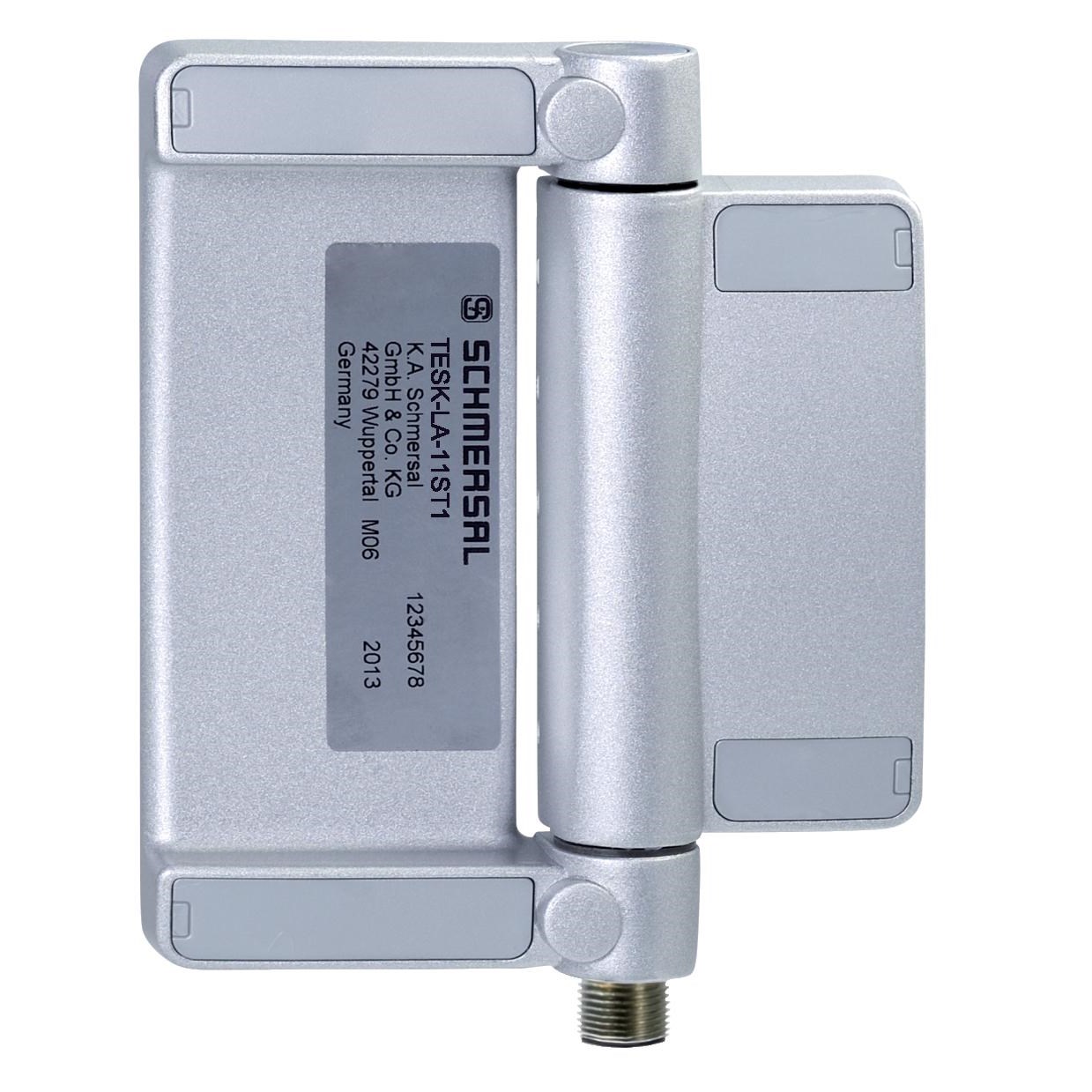

Schmersal 103005721 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 103005721

1

Specifications

Product Type	Safety Hinge Switch
Brand	Schmersal
Series	TESK
No. of N/C Contacts	2
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	30 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	2 A, 1 A
Rated Voltage	230 V AC, 24 V DC
Terminal Type	Connector M12
Mechanical Durability	1000000 Cycles
Contact Material	Silver Nickel Alloy
Housing Colour	Silver
Housing Material	Metal, zinc die-cast
Depth	20 mm
Height	116 mm
Weight	371 g
Width	98 mm
Operating Temperature	-25 to 65 °C
IP Rating	IP65
Standards and Approvals	CCC, cULus, EC002591
Enclosure Dimensions	20 mm L x 98 mm W x 116 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
