Specifications

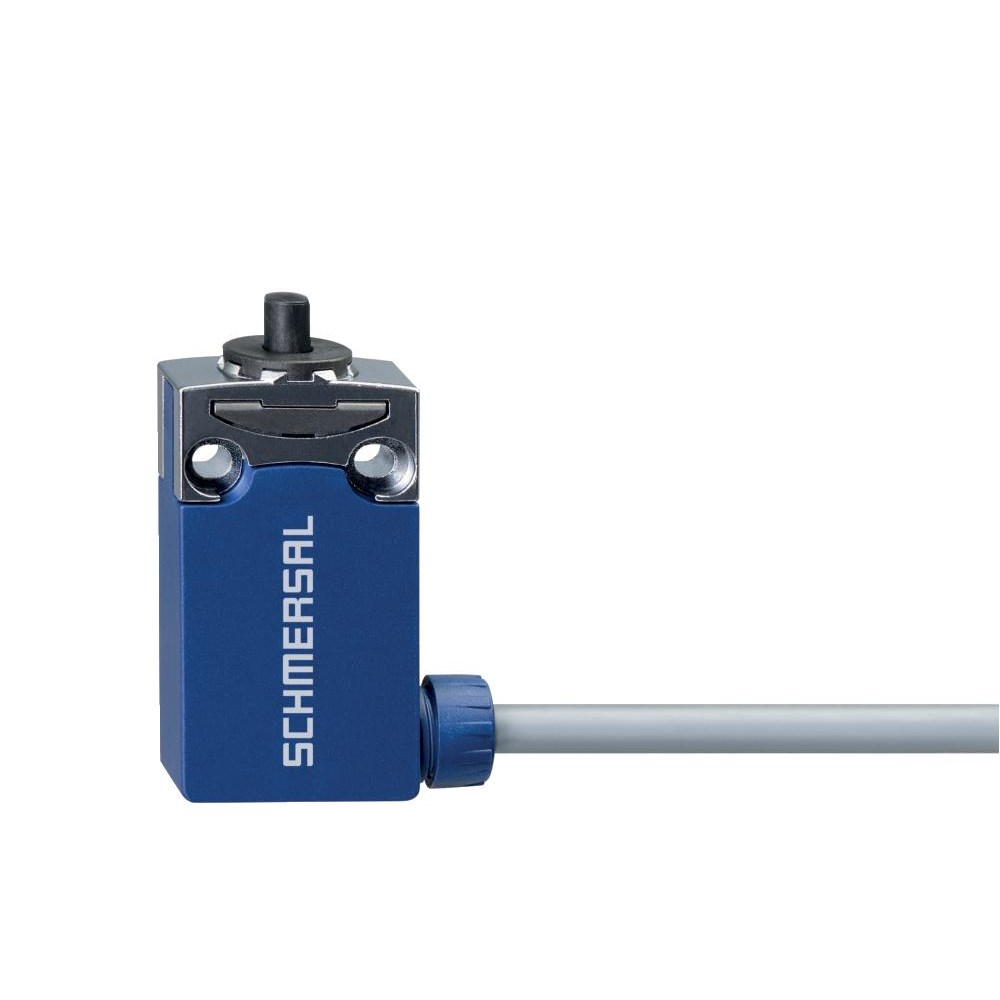

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Series	PS116
Rated Insulation Voltage (Ui)	300 V
Switching Principle	Slow Action
Contact Configuration	2NO+1NC
Rated Current	1.5 A
Rated Voltage	240 VAC
Mechanical Durability	10000000 Cycles
Actuator Type	Plunger Shape S200
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Weight	186 g
Operating Temperature	-30 to 80 deg C
IP Rating	IP66, IP67
Standards and Approvals	CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	16.6 mm L x 31 mm W x 64 mm H
