Specifications

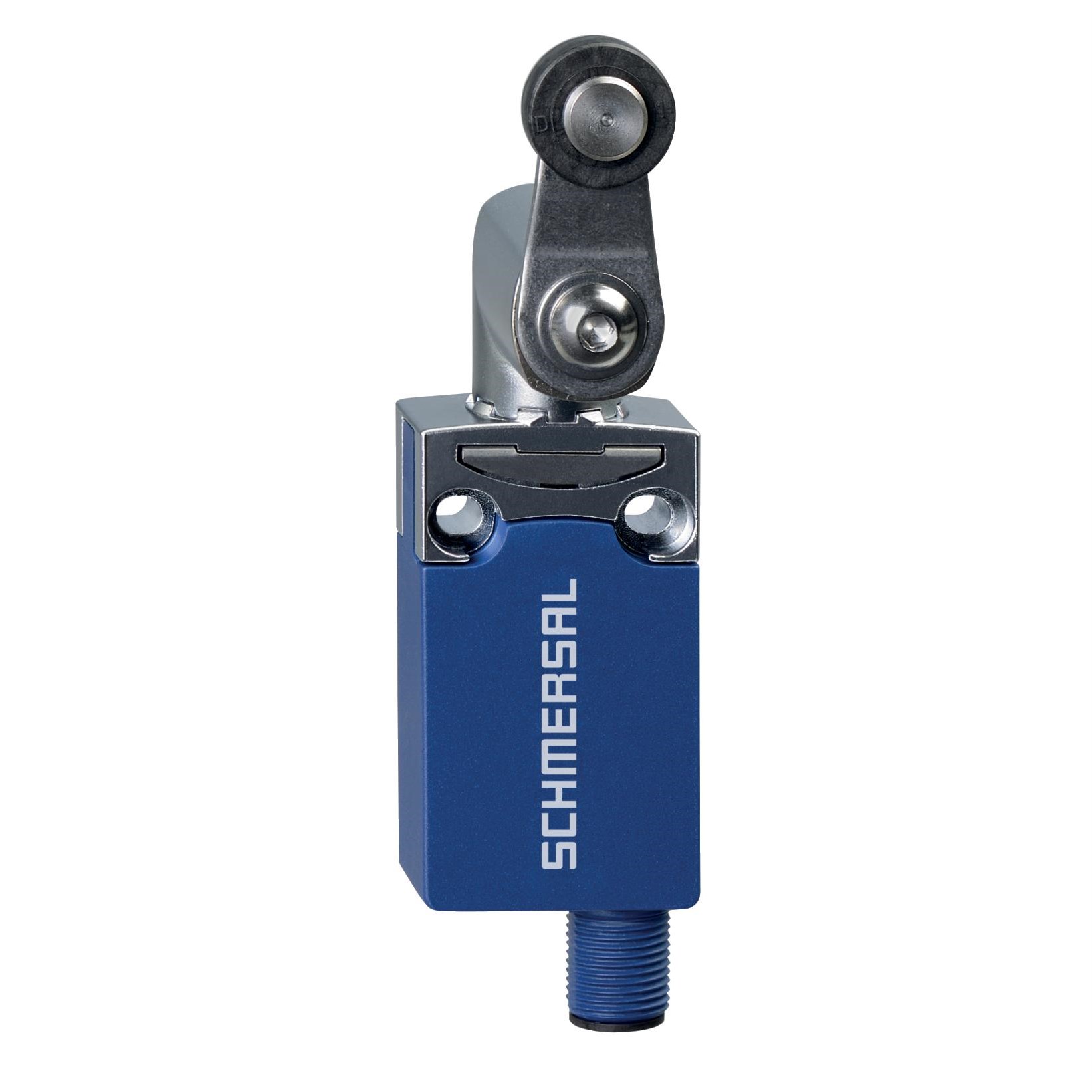

Product Type	Position Switch
Brand	Schmersal
Series	PS116
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	300 V
Terminal Type	Connector M12, 4-pole
Actuator Type	Roller lever H200
Housing Material	Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Depth	16.6 mm
Height	101 mm
Weight	109 g
Width	31 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP66,IP67
Ambient Temperature	-40 ... +80 °C
Standards and Approvals	BG-GS-ET-15, DIN VDE 0660-200, EN IEC 60947-5-1
Enclosure Dimensions	16.6 mm L
