Specifications

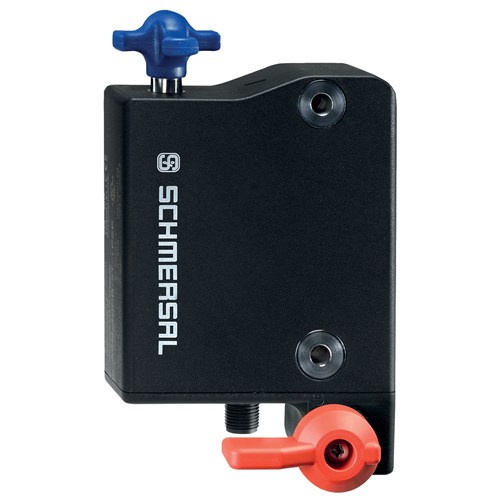

Product Type	Solenid Interlock Switch
Brand	Schmersal
Series	AZM 300
Rated Insulation Voltage (Ui)	32 V
Rated Current	800 mA
Rated Voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Mechanical Durability	1000000 Cycles
Actuator Type	AZ/AZM300-B1
Guard Locking Force	1,150 N
Housing Material	Glass-fibre, reinforced thermoplastic
Depth	146 mm
Height	55 mm
Weight	610 g
Width	87.5 mm
Operating Temperature	0 to 60 °C
IP Rating	IP66; IP69; IP67
Standards and Approvals	EN IEC 61508, EN ISO 13849-1 EN ISO 14119 EN IEC 60947-5-3
Enclosure Dimensions	146 mm L x 55 mm H
