Specifications

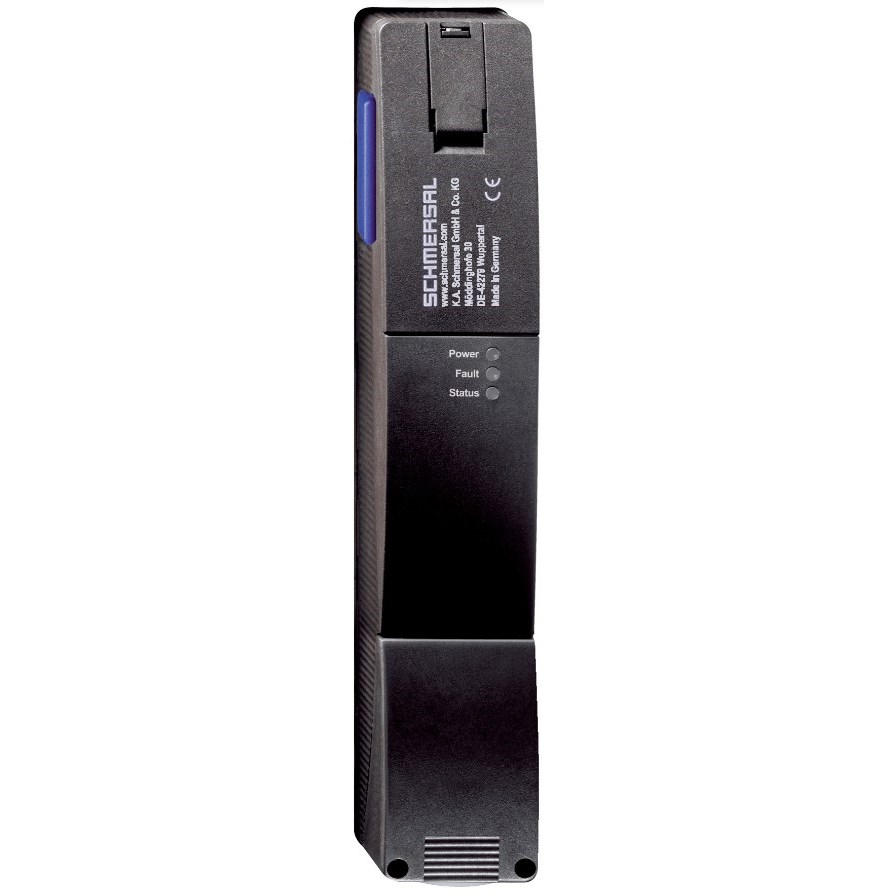

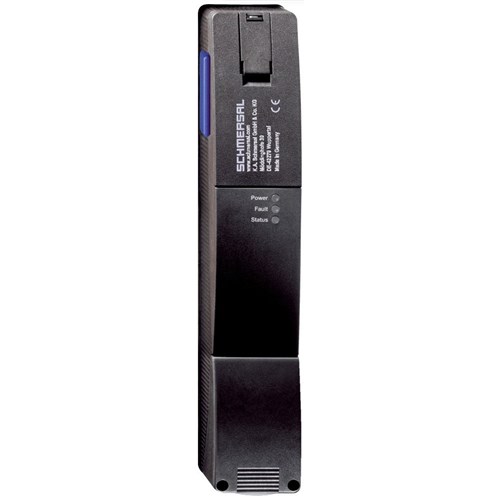

Product Type	Solenid Interlock Switch
Brand	Schmersal
Series	AZM 201
Contact Configuration	2NC
Rated Current	1,200 mA
Rated Voltage	24 VDC
Terminal Type	Screw terminals
Cable Entry	1 x M20
Guard Locking Force	2,600 N
Housing Material	Glass-fibre, reinforced thermoplastic
Depth	50 mm
Height	220 mm
Length	50 mm
Weight	586 g
Width	40 mm
Operating Temperature	-25 to 60 deg C
IP Rating	IP66,IP67
Ambient Temperature	-25 ... +60 °C
Standards and Approvals	EN IEC 60947-5-3 EN IEC 61508 EN ISO 13849-1 EN ISO 14119
Enclosure Dimensions	50 mm L x 40 mm W x 220 mm H
