Specifications

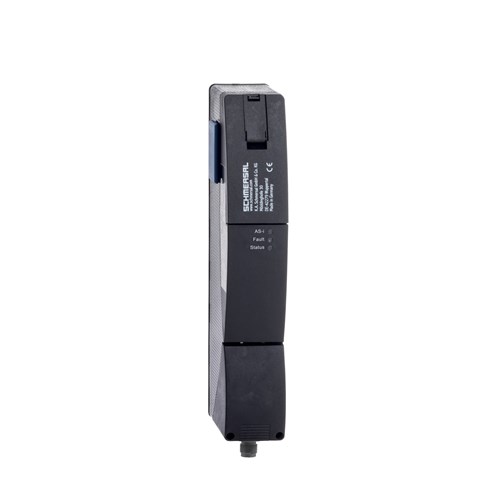

Product Type	Solenid Interlock Switch
Brand	Schmersal
Series	AZM 201
Rated Current	100 A
Mechanical Durability	1000000 Cycles
Actuator Type	AZ/AZM201-B1; AZ/AZM201-B30
Device Construction	Zinc Die-Cast
Guard Locking Force	2,000 N
Housing Material	Glass-fibre, reinforced thermoplastic
Shock Resistance acc. To IEC/EN 60068-2-27	30 g/11 ms
Depth	50 mm
Height	235.5 mm
Weight	537 g
Width	40 mm
Operating Temperature	-25 to 70 °C
IP Rating	IP66; IP67
Performance Level	e (Interlocking Function)
Standards and Approvals	EN IEC 60947-5-3, EN IEC 61508, EN ISO 13849-1, EN ISO 14119
Enclosure Dimensions	50 mm L x 40 mm W x 220 mm H
