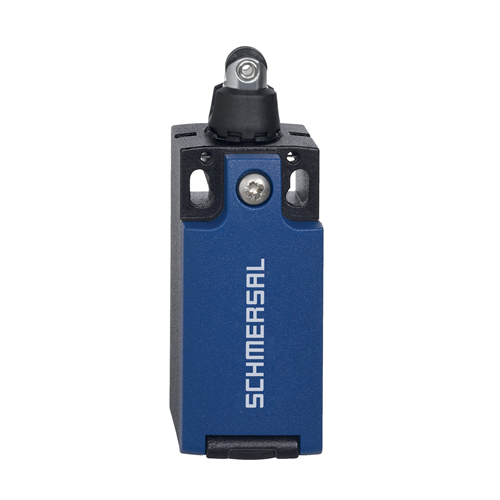

Schmersal 103028096 Position Switch with Safety Function 50VAC 1NO+1NC

Product Code: 103028096

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	250 VAC
Switching Principle	Snap Action
Contact Configuration	1NO+1NC
Rated Current	3 A
Rated Voltage	50 VAC
Terminal Type	Screw terminals
Mechanical Durability	10000000 Cycles
Thermal Test Current	4A
Actuator Type	Roller plunger R200
Contact Material	Gold Plated Silver
Housing Material	Metal, zinc die-cast
Depth	32.5 mm
Height	85.6 mm
Weight	204 g
Width	31 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP66,IP67
Ambient Temperature	-40 ... +80 °C
Standards and Approvals	CCC, cULus, EC000030, EN IEC 60947-5-1
Enclosure Dimensions	32.5 mm L x 31 mm W x 85.6 mm H
