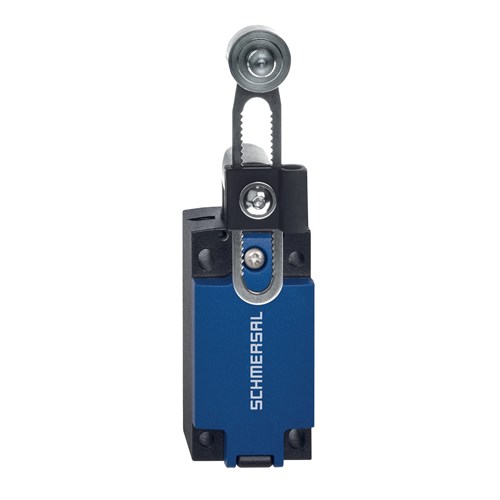

Schmersal 103035504 Position Switch with Safety Function 240VAC 2NC

Product Code: 103035504

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	2
Rated Insulation Voltage (Ui)	300 V
Switching Principle	Snap Action
Contact Configuration	2NC
Rated Current	3 A
Rated Voltage	240 VAC
Terminal Type	Screw terminals
Mechanical Durability	10000000 Cycles
Contact Material	Silver
Housing Material	Metal, zinc die-cast
Depth	37 mm
Height	168 mm
Weight	439 g
Width	41 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP66,IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	CCC, cULus, EC000030, EN IEC 60947-5-1
Enclosure Dimensions	37 mm L x 41 mm W x 168 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
