Specifications

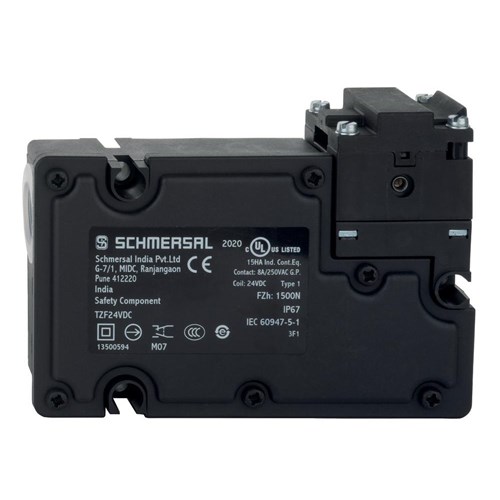

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	TZF
Rated Insulation Voltage (Ui)	250 V
Rated Current	4 A
Rated Voltage	24 V DC
Mechanical Durability	1000000 Cycles
Cable Entry	1 x M20 x 1.5
Guard Locking Force	1,500 N
Housing Material	Glass-fibre, reinforced thermoplastic
Depth	41 mm
Height	92.5 mm
Weight	480 g
Width	129 mm
Operating Temperature	0 to 50 °C
IP Rating	IP67; IP65
Standards and Approvals	EN ISO 13849-1
Enclosure Dimensions	41 mm L x 92.5 mm H
