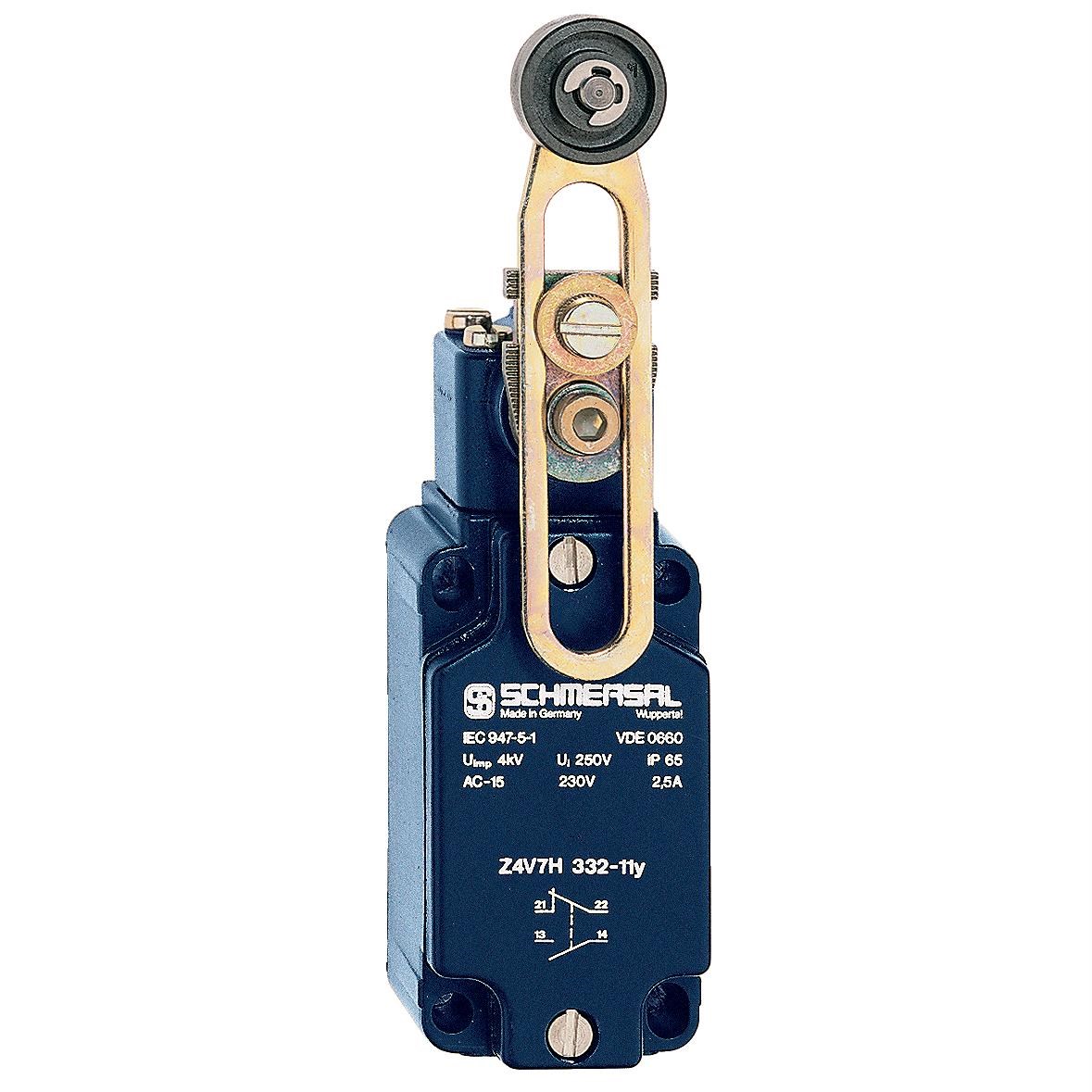

Schmersal 131152177 Position Switch with Safety Function 230VAC

Product Code: 131152177

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Current	2.5 A
Rated Voltage	230 VAC
Thermal Test Current	6A
Actuator Type	Roller lever
Contact Material	Gold Plated Silver
Housing Material	Light alloy die-casting
Depth	57 mm
Height	173.5 mm
Weight	275 g
Width	40 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP65,IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	EN ISO 13849-1
Enclosure Dimensions	57 mm L x 40 mm W x 173.5 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

EU Declaration of Conformity

Other Certification

CAD Blocks & Dimensions

Dimensions

Dimensions
