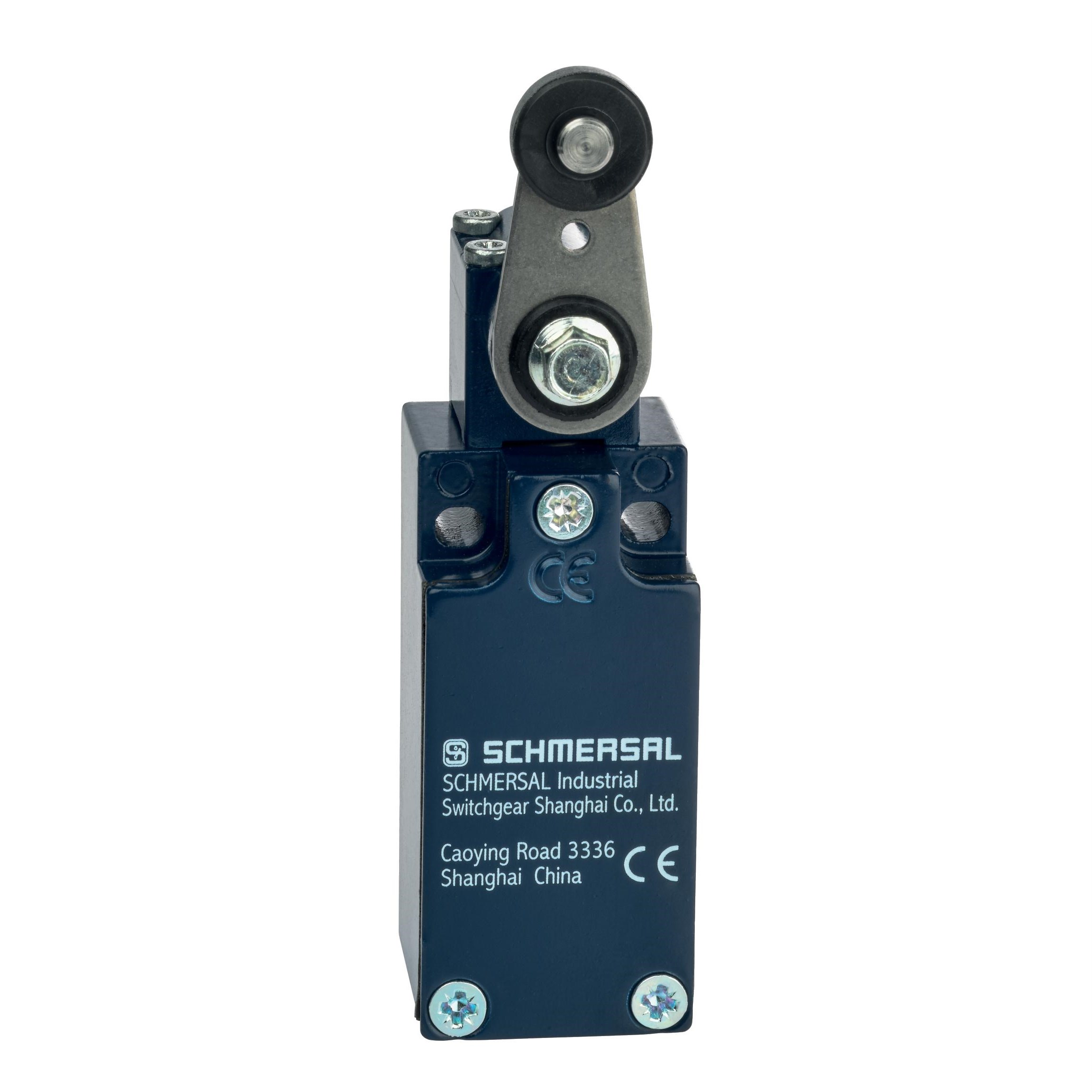

Schmersal 151095086 Position Switch 230VAC 1NO+1NC

Product Code: 151095086

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4 A
Rated Voltage	230 VAC
Terminal Type	Screw terminals
Thermal Test Current	10A
Actuator Type	Roller lever
Contact Material	Silver
Housing Material	Metal, zinc die-cast
Depth	46 mm
Height	110.5 mm
Weight	211 g
Width	30 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP65,IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	46 mm L x 30 mm W x 110.5 mm H
