Specifications

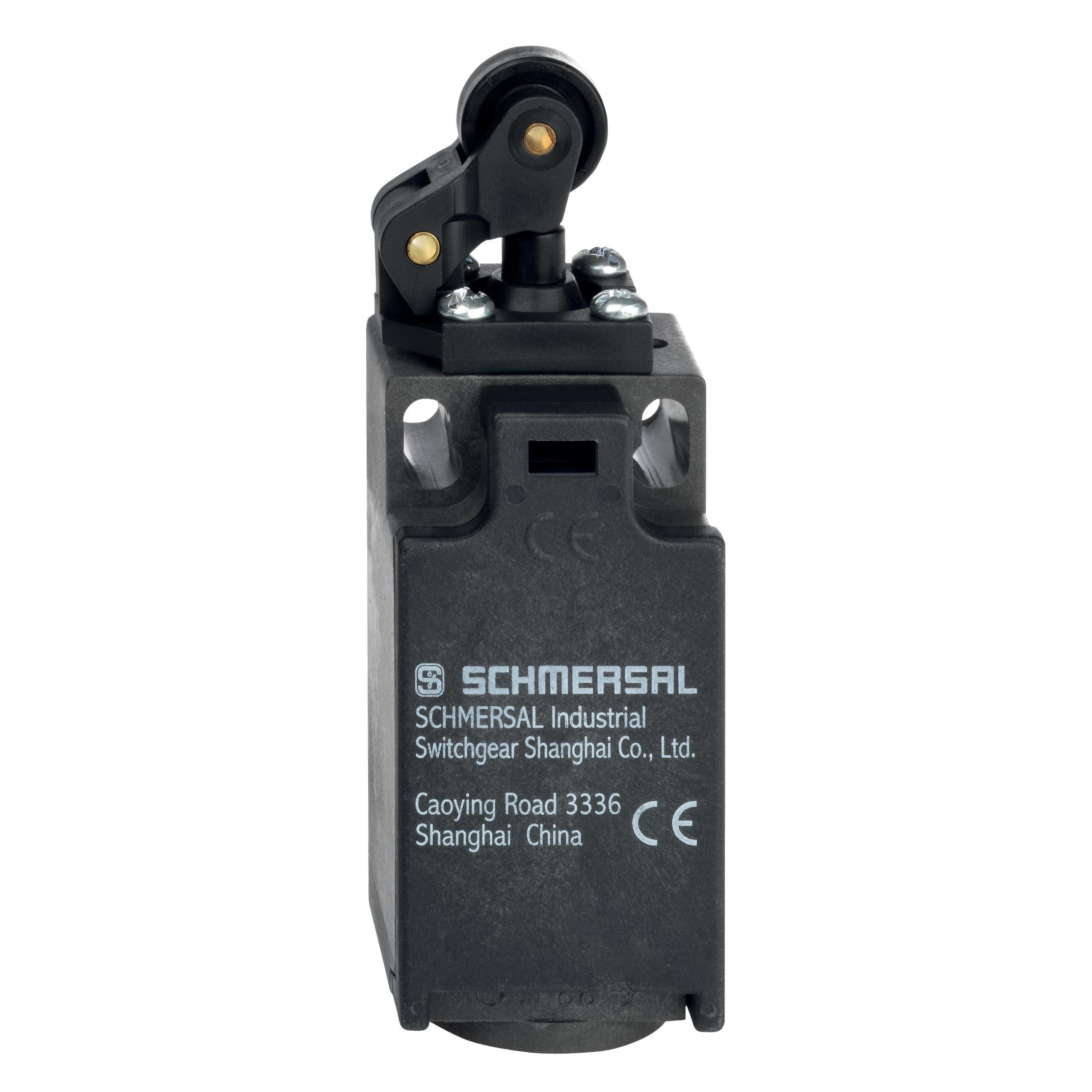

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4 A
Rated Voltage	230 VAC
Mechanical Durability	20000000 Cycles
Actuator Type	Offset Roller Lever
Contact Material	Silver
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Weight	59 g
Operating Temperature	-30 to 80 deg C
IP Rating	IP65, IP67
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	30 mm L x 30 mm W x 89.5 mm H
