Specifications

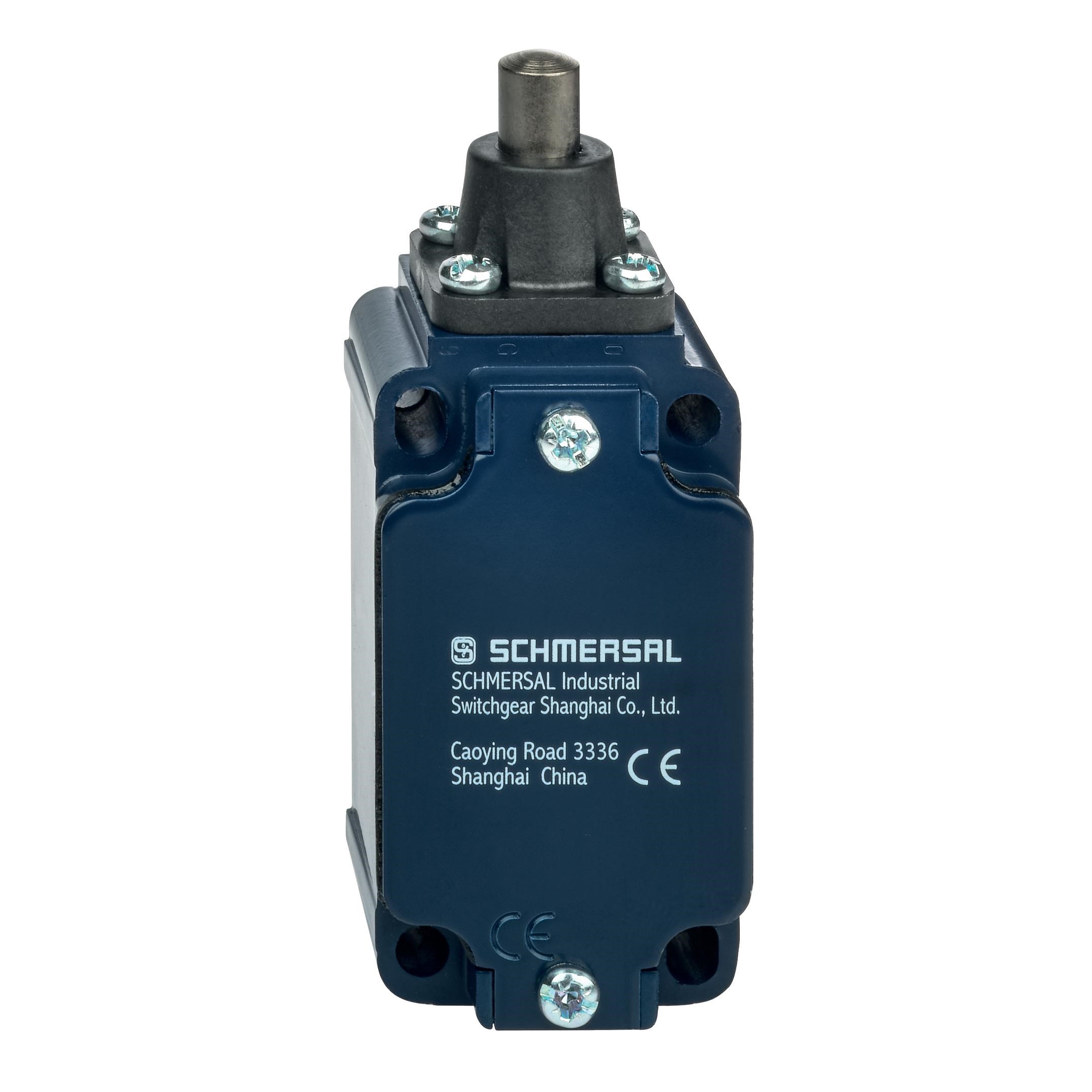

Product Type	Position switch
Brand	Schmersal
Series	TS 335
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Slow Action
Contact Configuration	1NO+1NC
Rated Current	4 A, 4 A
Rated Voltage	230 V AC, 24 V DC
Terminal Type	Screw terminals
Connector Type	Female Connector (Side B)
Mechanical Durability	30000000 Cycles
Actuator Type	Plunger, Type B (EN 50041)
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Light alloy die-casting, painted
Depth	38 mm
Height	103.5 mm
Weight	205 g
Width	40.5 mm
Operating Temperature	-40 to 80 °C
IP Rating	IP65, IP67
Standards and Approvals	BG-GS-ET-15, EN IEC 60947-5-1
Enclosure Dimensions	38 mm L x 40 mm W x 103.5 mm H
