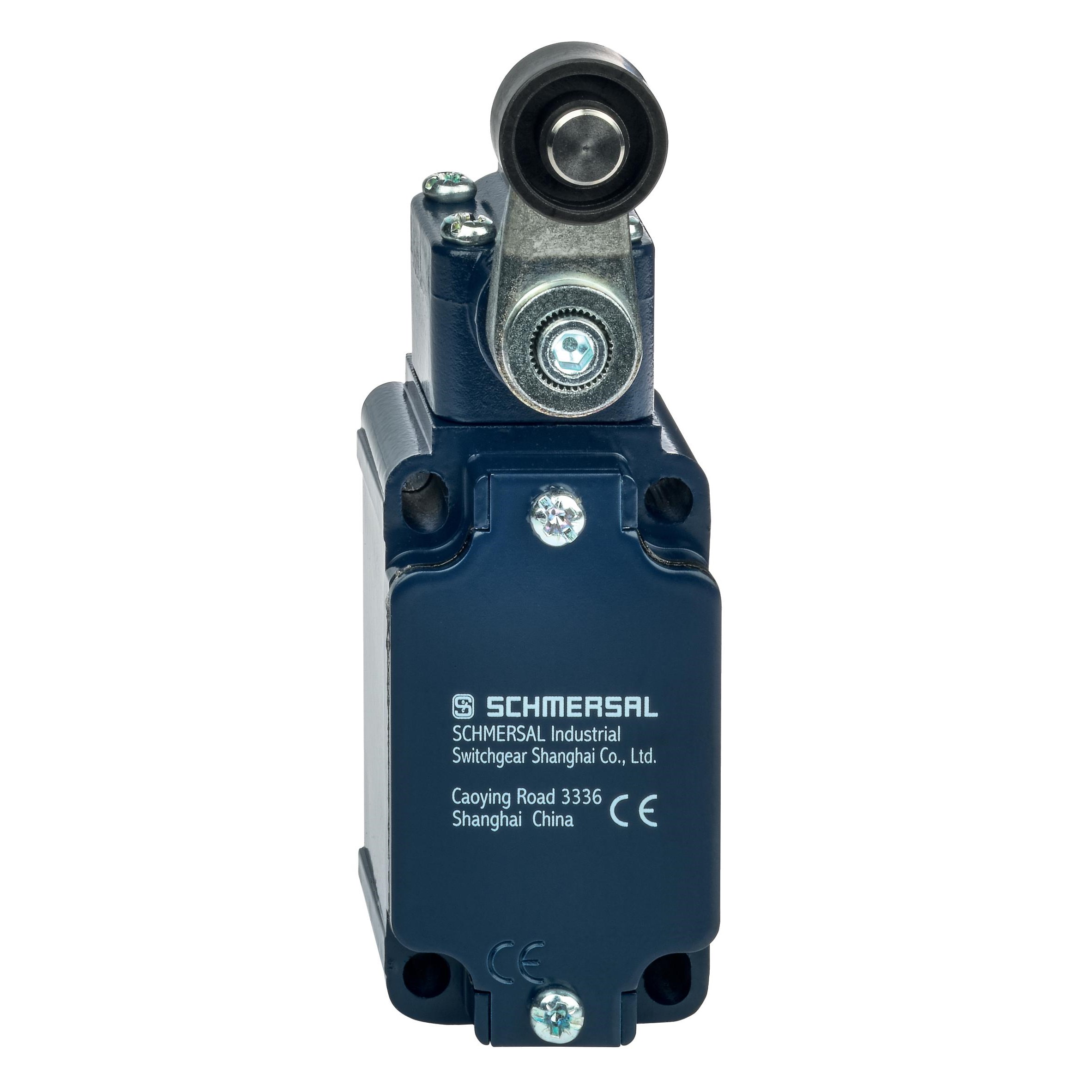

Schmersal 151170267 Position Switch 230VAC, 24VDC

Product Code: 151170267

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/O Contacts	2
Rated Current	4 A
Rated Voltage	230 VAC, 24 VDC
Terminal Type	Screw terminals
Mechanical Durability	30000000 Cycles
Thermal Test Current	10A
Actuator Type	Roller lever
Contact Material	Silver
Enclosure Material	Painted
Housing Material	Painted
Depth	60.6 mm
Height	129.5 mm
Weight	250 g
Width	40.5 mm
Operating Temperature	-30 to 80 deg C
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	EN ISO 13849-1
Enclosure Dimensions	60.55 mm L x 40 mm W x 129.5 mm H
