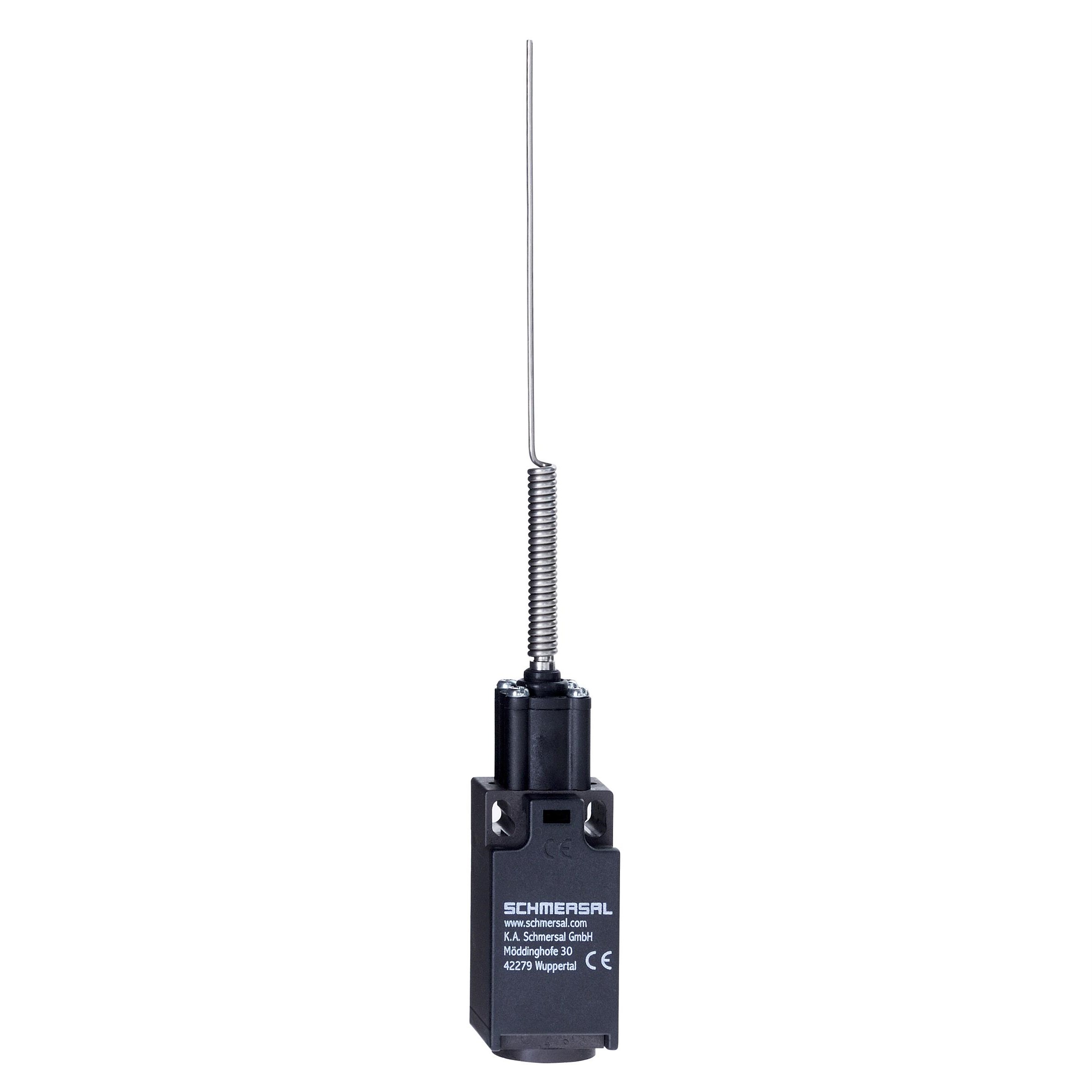

Schmersal 153004136 Position Switch with Safety Function 230VAC, 24VDC 1NO+1NC

Product Code: 153004136

1

Specifications

Product Type	Position Switch
Brand	Schmersal
No. of N/C Contacts	1
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	500 V
Switching Principle	Snap Action
Contact Configuration	1NO+1NC
Rated Current	4 A, 1 A
Rated Voltage	230 VAC, 24 VDC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Thermal Test Current	10A
Actuator Type	Spring rod lever
Contact Material	Silver
Housing Material	Metal, Die Cast Zinc
Depth	30 mm
Height	232 mm
Weight	183 g
Width	30 mm
Operating Temperature	-30 to 80 deg C
IP Rating	IP65,IP67
Ambient Temperature	-30 ... +80 °C
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
Enclosure Dimensions	30 mm L x 30 mm W x 232 mm H

Documents

IPD Product Catalogue V17

SCHMERSAL Datasheet

Certificate

Certificate of Compliance

Dimensions

EU Declaration of Conformity

Other Certification
