Specifications

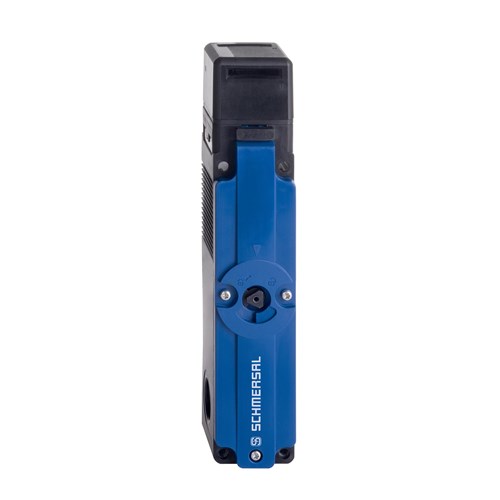

Product Type	Solenoid Interlock Switch
Brand	Schmersal
Series	AZM 150
No. of N/C Contacts	3
No. of N/O Contacts	1
Rated Insulation Voltage (Ui)	300 V
Switching Principle	Slow Action
Contact Configuration	NO+NC
Rated Current	5 A
Rated Power	8.5 W
Rated Voltage	24 V DC
Terminal Type	Screw terminals
Mechanical Durability	1000000 Cycles
Cable Entry	3 x M20 x 1.5
Contact Material	Silver
Guard Locking Force	1,500 N
Housing Material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Depth	48 mm
Height	204 mm
Weight	590 g
Width	40 mm
Operating Temperature	-25 to 55 °C
IP Rating	IP67; IP65
Standards and Approvals	TUV, cULus
Enclosure Dimensions	48 mm L x 40 mm W x 204 mm H
