Specifications

Brand	SELEC
Series	MFM384-C-CU
Communication Interface	RS485, Modbus RTU
Measurement Parameters	Voltage (L-L/L-N, individual/average), Current, Frequency, Power Factor,Total Harmonic Distortion – Current and Voltage, Run Hours – Hours & minutes, Active/Reactive/Apparent Power, Active/Reactive/Apparent Energy, Import/Export Energy, Max/Min Demand Power
No. of Phases	3 (also 1-phase capable)
Nominal Voltage (Un) L-L	19 to 519V AC
Nominal Voltage (Un) N-L	11 to 300V AC
Pole Type	3P+N / 1P+N
Accuracy	Voltage (L-N/L-L): ±0.5% of F.S.; Current: ±0.5% of F.S.
Power Consumption	<8 VA
Rated Frequency	50 Hz
Supply Voltage	100 to 240V (±15%)
Terminal Type	Screw terminal RJ45 connector
Display	High definition white Backlight LCD
Housing	DIN96
Housing Material	Self-extinguishing polycarbonate (UL94 V-0)
Mounting Method	Panel mounted (Max. panel thickness 6mm)
Depth	99 mm
Weight	< 0.320 kg
Width	50 mm
IP Rating, Front Side	2
Storage Temperature	-20 to +70 °C
Operating Temperature	-10 to 55 °C
IP Rating	IP20 (terminals), IP54 (front of housing)
Standards and Approvals	CE, RoHS

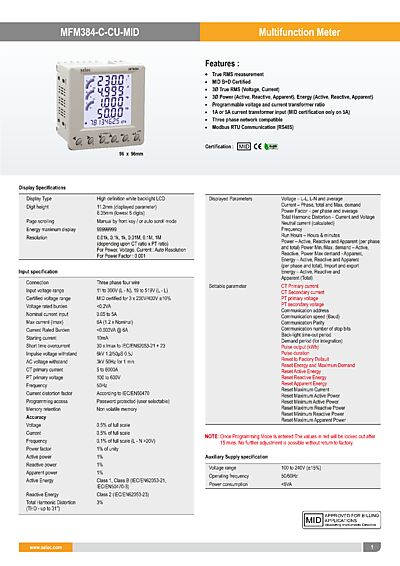

SELEC MFM384-C-CU MULTIFUNCTION POWER METER DIGITAL 3-PHASE PANEL MOUNT COPPER CONNECTION
