Specifications

Product Type	SOLID CORE CURRENT TRANSFORMER
Brand	ABB
Series	CT1M
Insulation Class (IEC 61869-1, 61869-2)	Class E
No. of Primary Input	1
Rated Cross-Section	Ø86 mm cable; 100×30, 80×50, 70×60 mm bar (H&V)
Accuracy Class	Class 0.5
Calibrated	Yes
Max. Operating Voltage	0.72 kV
Rated Primary Current	2000 A
Rated Operating Frequency	50...60 Hz
Over Current Limiting Factor	FS 5
Rated Secondary Current	5 A
Rated Burden (VA)	45 VA
Compatibility	ABB Tmax XT5–XT7, Emax E2.2/E4.2/E6.2; Energy meters; Network Analyzers & Multimeters
Model	CT1M-10
Secondary Connection	Screw terminals (s1-s2)
Snap Mounting	No
Depth	45 mm
Height	155 mm
Weight	1.11 kg
Width	140 mm
Storage Temperature	-50°C to +80°C
Operating Temperature	-25°C to +40°C
IP Rating	IP20

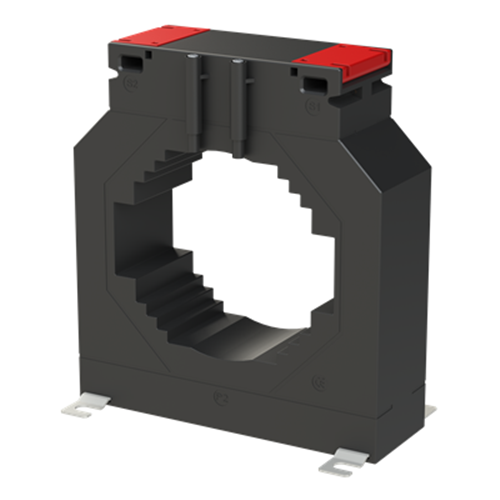

SOLID CORE CT 2000A CLASS 0.5
