Specifications

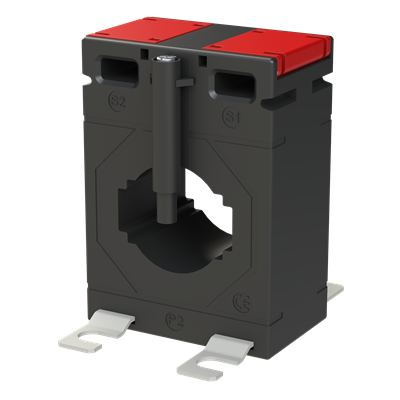

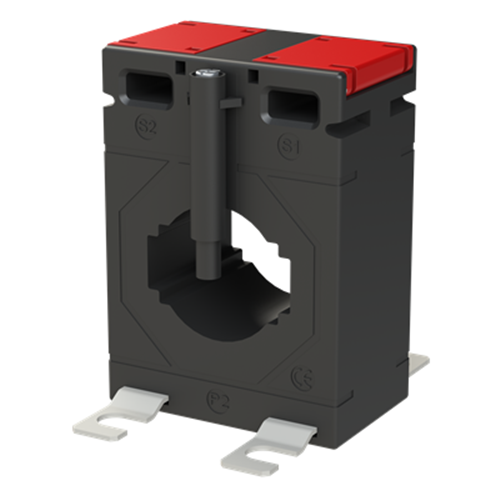

Product Type	SOLID CORE CURRENT TRANSFORMER
Brand	ABB
Series	CT1M
Insulation Class (IEC 61869-1, 61869-2)	Class E
No. of Primary Input	1
Rated Cross-Section	Ø26 mm cable; 30×10, 25×15 mm bar (H)
Accuracy Class	Class 0.5
Calibrated	Yes
Max. Operating Voltage	0.72 kV
Rated Primary Current	500 A
Rated Operating Frequency	50...60 Hz
Over Current Limiting Factor	FS 5
Rated Secondary Current	5 A
Rated Burden (VA)	5 VA
Compatibility	ABB S200, S750DR, S800, Tmax XT1–XT5; Energy meters; Network Analyzers & Multimeters
Model	CT1M-3
Secondary Connection	Screw terminals (s1-s2)
Snap Mounting	Yes (optional DIN Rail Adapter 2CSG428310R1000)
Depth	31 mm
Height	70 mm
Weight	0.33 kg
Width	50 mm
Storage Temperature	-50°C to +80°C
Operating Temperature	-25°C to +40°C
IP Rating	IP20

SOLID CORE CT 500A CLASS 0.5
