Specifications

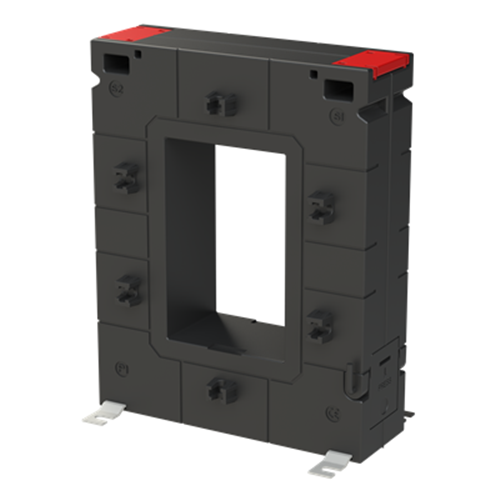

Product Type	SPLIT-CORE CURRENT TRANSFORMER
Brand	ABB
Series	CT1M
Insulation Class (IEC 61869-1, 61869-2)	Class B
No. of Primary Input	1
Rated Cross-Section	85×55 mm bar (V)
Accuracy Class	Class 0.5
Calibrated	Yes
Max. Operating Voltage	0.72 kV
Rated Primary Current	1000 A
Rated Operating Frequency	50...60 Hz
Over Current Limiting Factor	FS 10
Rated Secondary Current	5 A
Rated Burden (VA)	10 VA
Compatibility	ABB Tmax XT5–XT7, Emax E1.2/E2.2; Energy meters; Network Analyzers & Multimeters
Model	CT1M-S-80
Secondary Connection	Screw terminals (s1-s2)
Snap Mounting	No
Depth	40 mm
Height	158 mm
Weight	1.42 kg
Width	125 mm
Storage Temperature	-20°C to +75°C
Operating Temperature	-5°C to +40°C
IP Rating	IP20

SPLIT CORE CT 1000A CLASS 0.5
