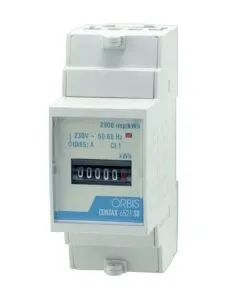

ORBIS 1 PHASE, 65A, 230V AC kWh METER CLASS 1, DIRECT CONNECT, 2 MODULES WIDE, DIN RAIL MOUNT CONTAX6521S0-230

Product Code: CONTAX6521S0-230

Technical Specifications

Maximum Active Current (A) 65
Measurement Category CAT III (EN 61010-1)
Minimum Active Current (mA) 500
Reference Active Current (A) 10
Voltage Variation -20% to +15% of Reference Voltage
Brand ORBIS
Accuracy Class 1
Ambient Temperature Range (°C) -20 to 50
Connection Type Direct Through Screw Terminals
Degree of Protection IP66
Dimensions (mm) 35W x 88H x 66.5D
Maximum Current (A) 65
Minimum Operational Voltage AC (V) 135
Mounting Type DIN rail
No. of Modules 2
Nominal Voltage AC (V) 230
Number of Display Digits 5 Digits + 1 Decimal
Operational Temperature Range (°C) -20 to +50
Power Consumption (VA) Voltage Circuit: 7.5
Power Consumption (W) Voltage Circuit: 0.5 Current Circuit: 0.2
Rated Frequency (Hz) 50/60
Rated Operational Voltage (V) 230
Standards and Approvals EN 61010-1:2011, EN 62052-11:2004, EN 62053-21:2003
Storage Temperature Range (°C) -25 to 70
