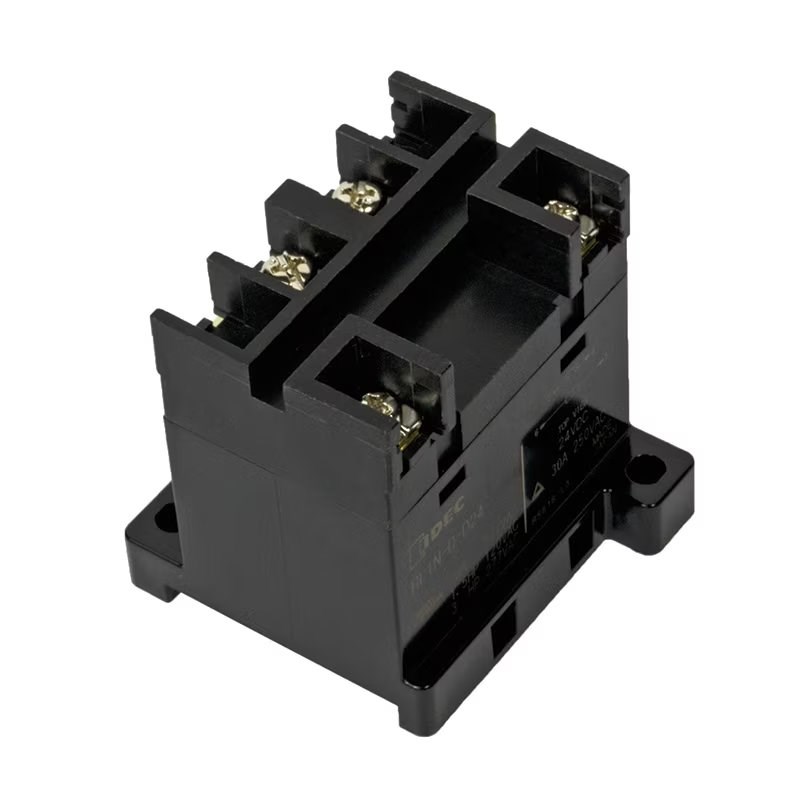

IDEC RL1N-D-A200 Power Relay 1x (SPST Double Make) 200-240VAC Coil 30A Screw Terminal

Product Code: RL1N-D-A200

  • Rated for 200-240 VAC, 30 A
  • DIN rail mounting with screw terminals
  • Fast 30 ms operating time
  • Durable Ag alloy contacts
  • Meets CE, cRuUS, RoHS, VDE standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1X (SPST, Double Make)
Coil Voltage AC (V) 200 - 240
Dimensions (mm) 50W x 54H x 53.4D
No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Weight (g) 90-135
Minimum Mechanical Life 1,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Screw Terminal
Power Consumption (VA) 1.7 - 2.5
Maximum Switching Current (A) 30
Product Type Power Relay
Brand IDEC
Contact Configuration 1 x (SPST, Double Make)
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type DIN Rail
Number of Poles 1
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 30 A
Rated Power 1.7-2.5 VA
Rated Voltage 200-240 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Screw
Vibration Resistance 10-55 Hz
Weight 90-135 g

Description

The IDEC RL1N-D-A200 is a 1-pole screw DIN rail relay designed for efficient operation with motor, lighting, and heater loads. It features Double Make contacts to ensure reliable connectivity. This 200V AC relay is RoHS compliant, adhering to environmental standards for safety and sustainability. Ideal for a variety of industrial applications, it offers a robust solution for controlling high-power circuits.
