Product Code: RL1N-T-D12

12 VDC, 30 A rated power for reliable operation
SPST double make contact for efficient switching
Flange mount with screw terminals for easy setup
Durable Ag alloy contacts ensure longevity
CE, cRuUS, RoHS, VDE certified for compliance

Specifications

Coil Voltage DC (V)	12
Contacts	1X (SPST, Double Make)
Dimensions (mm)	34W x 67H x 49D
No. of Poles	1
Operational Temperature Range (°C)	-25 to 55
Power Consumption (W)	1.9
Maximum Switching Current (A)	30
Weight (g)	90-135
Minimum Mechanical Life	1,000,000
Operating Humidity	5 to 85%
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Screw Terminal
Product Type	Power Relay
Brand	IDEC
Contact Configuration	1 x (SPST, Double Make)
Contact Material	Ag Alloy
Degree of Protection	IP40
Humidity	5-85%
Mechanical Life	1000000 Operations
Mounting Type	Flange
Number of Poles	1
Operating Time	30 ms
Operational Temperature	-25 to 55 deg C
Rated Current	30 A
Rated Power	1.9 W
Rated Voltage	12 VDC
Shock Resistance	1000 ms
Standards and Approvals	CE, cRuUS, RoHS, VDE
Terminal Type	Screw
Vibration Resistance	10-55 Hz
Weight	90-135 g

Description

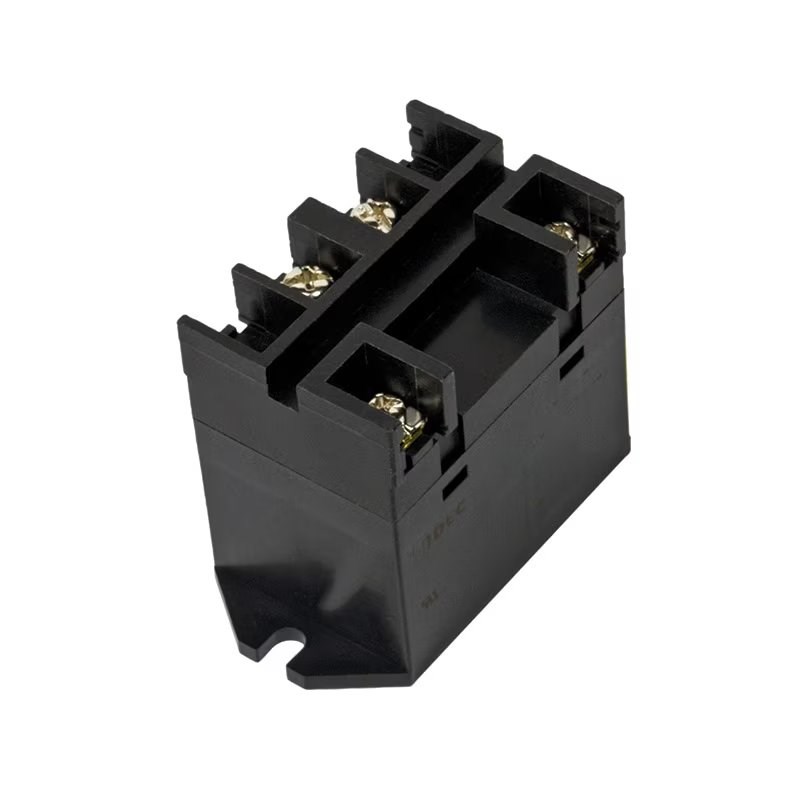

The IDEC RL1N-T-D12 is a 12V DC relay with a single-pole screw terminal flange designed for robust performance. It features Double Make contacts, making it suitable for motor, lighting, and heater load applications. This relay is RoHS compliant, ensuring adherence to environmental standards. Its design facilitates reliable switching operations in various industrial settings.
