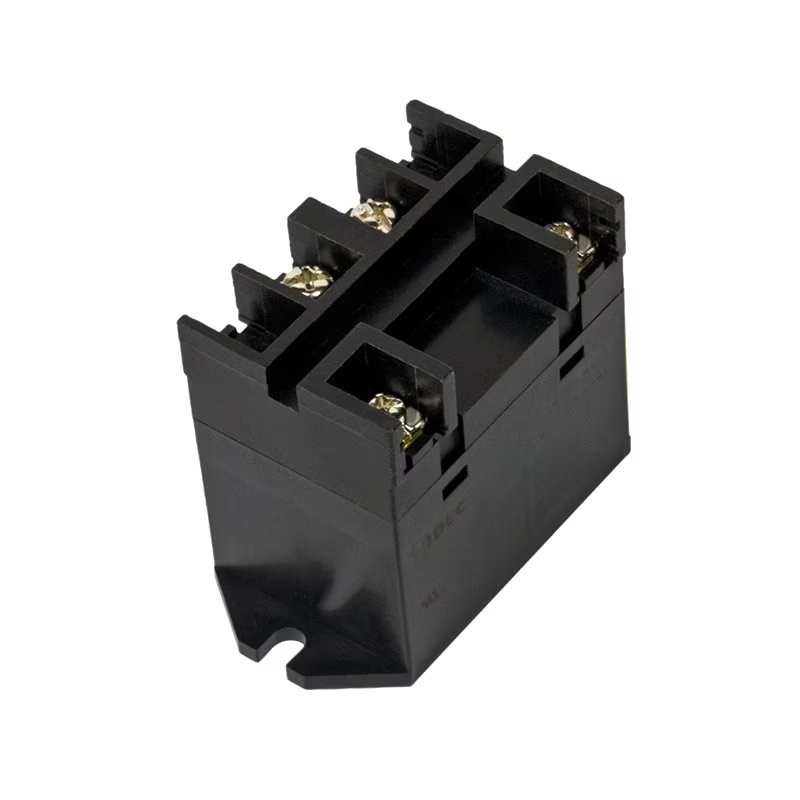

IDEC RL1N-T-A200 Power Relay 1x (SPST Double Make) 200-240VAC Coil 30A Screw Terminal

Product Code: RL1N-T-A200

  • Rated Voltage: 200-240 VAC
  • Current Capacity: 30 A
  • IP40 Protection Rating
  • CE, cRuUS, RoHS, VDE Certified
  • Durable with 1M operations lifespan
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1X (SPST, Double Make)
Coil Voltage AC (V) 200 - 240
No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Dimensions (mm) 34W x 67H x 49D
Power Consumption (VA) 1.7 - 2.5
Maximum Switching Current (A) 30
Weight (g) 90-135
Minimum Mechanical Life 1,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Screw Terminal
Product Type Power Relay
Brand IDEC
Contact Configuration 1 x (SPST, Double Make)
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type Flange
Number of Poles 1
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 30 A
Rated Power 1.7-2.5 VA
Rated Voltage 200-240 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Screw
Vibration Resistance 10-55 Hz
Weight 90-135 g

Description

The IDEC RL1N-T-A200 is a 1-pole screw terminal flange relay, rated for 200V AC applications. It features Double Make contacts, making it suitable for controlling motor, lighting, and heater loads. This relay is also RoHS compliant, adhering to strict environmental standards.
