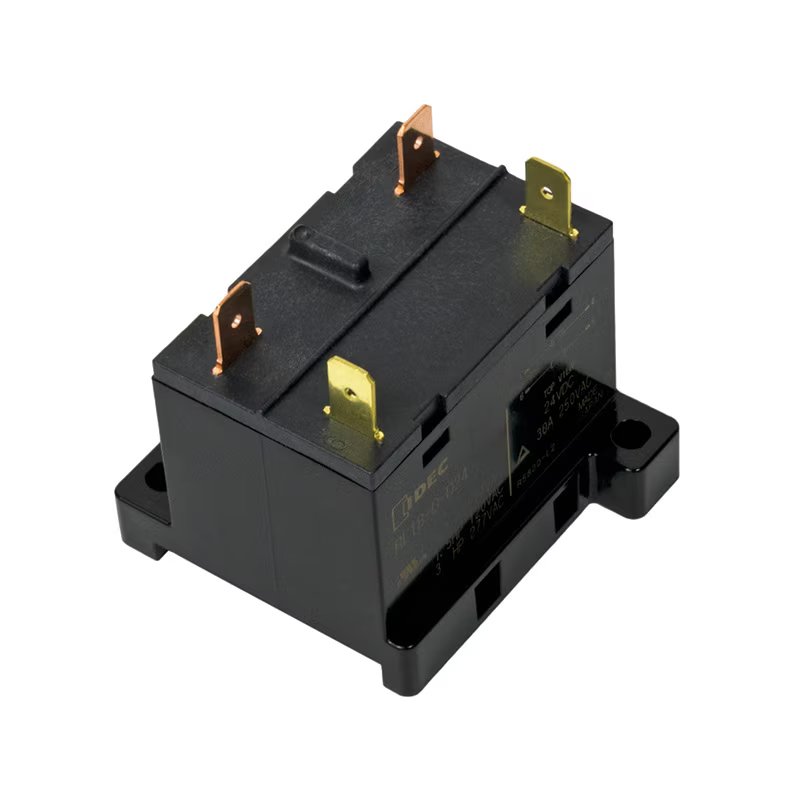

IDEC 1-POLE TAB TERMINAL DIN 24V DC RELAY RL1B-D-D24

Product Code: RL1B-D-D24

The IDEC RL1B-D-D24 is a 1-pole tab terminal DIN relay operating at 24V DC, designed to handle motor, lighting, and heater loads efficiently. It features Double Make contacts for reliable connectivity and switching. This relay is also RoHS compliant, ensuring adherence to environmental standards for electronic components. Ideal for a variety of industrial applications, it offers robust performance in controlling high-power devices.

Technical Specifications

Operating Humidity 5 to 85%
Terminal Shape Quick Connect Terminal
Resistance to Shock (m/s²) 1000
Brand IDEC
Mounting Type DIN Rail Mount with Panel Mount Tabs
Operational Temperature Range (°C) -25 to 55
Coil Voltage DC (V) 24
Contact Material Ag Alloy
Contacts 1X (SPST, Double Make)
Maximum Switching Current (A) 30
Minimum Mechanical Life 1,000,000
No. of Poles 1
Operating Time 30ms Max
Power Consumption (W) 1.9
Resistance to Vibrations 10 to 55Hz
Dimensions (mm) 54W x 50H x 39.5D
Weight (g) 90-135
Degree of Protection IP40
