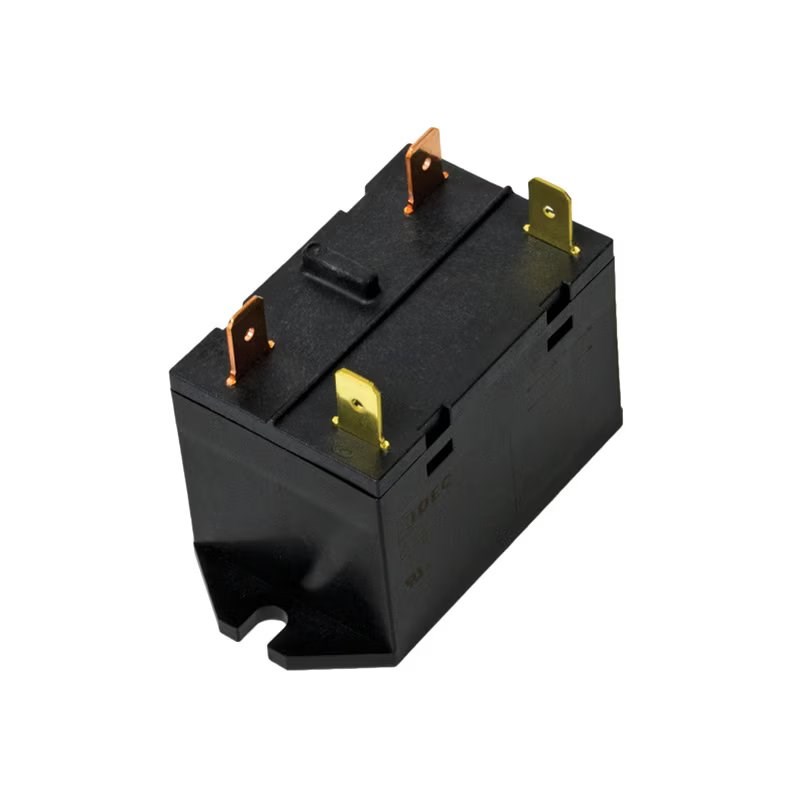

IDEC RL1B-T-D24 Power Relay 1x (SPST Double Make) 24VDC Coil 30A Quick Connect Terminal

Product Code: RL1B-T-D24

  • 24 VDC, 30 A rated for robust power handling
  • Quick connect terminals for easy installation
  • Durable Ag alloy contact material
  • Flange mounting for secure placement
  • IP40 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 24
Contacts 1X (SPST, Double Make)
Dimensions (mm) 33W x 67H x 35D
No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Power Consumption (W) 1.9
Maximum Switching Current (A) 30
Weight (g) 90-135
Minimum Mechanical Life 1,000,000
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Quick Connect Terminal
Product Type Power Relay
Brand IDEC
Contact Configuration 1 x (SPST, Double Make)
Contact Material Ag Alloy
Degree of Protection IP40
Humidity 5-85%
Mechanical Life 1000000 Operations
Mounting Type Flange
Number of Poles 1
Operating Time 30 ms
Operational Temperature -25 to 55 deg C
Rated Current 30 A
Rated Power 1.9 W
Rated Voltage 24 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, cRuUS, RoHS, VDE
Terminal Type Quick Connect
Vibration Resistance 10-55 Hz
Weight 90-135 g

Description

The IDEC RL1B-T-D24 is a 24V DC relay with a single-pole tab terminal and flange. It features Double Make contacts, making it suitable for controlling motor, lighting, and heater loads. This relay is designed to meet the demands of industrial applications and is RoHS compliant, ensuring adherence to environmental standards.
